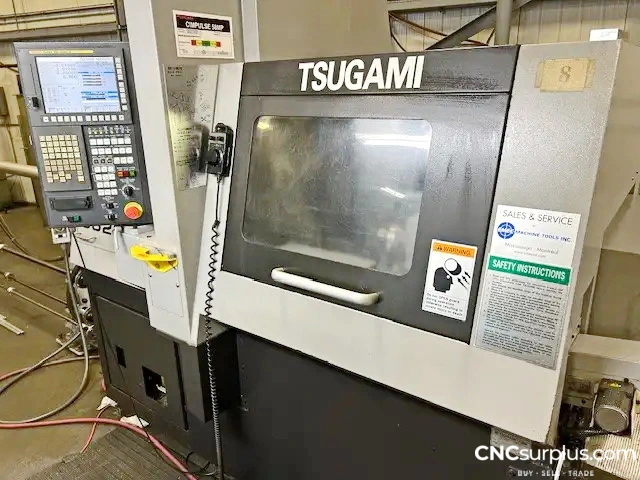

2011 TSUGAMI SS26 OPPOSED GANG TOOL CNC LATHE

2011 TSUGAMI SS26 OPPOSED GANG TOOL CNC LATHE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Swiss Type Automatic Screw Machines
Manufacturer:
TSUGAMI
Model:
SS26
Year:
2011
Stock #:
13662
Status:
For Sale

Description

2011 Tsugami SS26 Opposed Gang Tool CNC Lathe, 6-Axis, Sub-Spindle, 5000 RPM Tool Spindle, Rhinobar Bar Feeder

6-axis
Sub-spindle
Tool spindle (6000 rpm)
Front/rear tool post
Main/sub-spindle simultaneous operation
Rhinobar bar feeder

Max Turning Diameter1.023"25.984 mm
Max Machining Length10.63"270 mm
Max Drilling Dia (Main)0.472"11.989 mm
Max Tapping Dia (Main)M10M10
Max Drilling Dia (Sub)0.393"9.9822 mm
Max Tapping Dia (Sub)M8M8
Max Drill (Tool Spindle)0.314"7.9756 mm
Max Tap (Tool Spindle)M6M6
Tool Spindle Slot Cutter Dia1.77"44.958 mm
Power (Main)7.3 hp5.4 kW
Power (Sub)5 hp3.7 kW
# Axis66
RPM (Main)10,000 RPM10,000 RPM
RPM (Sub)10,000 RPM10,000 RPM
RPM (Driven Tools)50005000
Max Bar (Main)1.023"25.984 mm
Max Bar (Sub1.023"25.984 mm
Made InJapanJapan
ControlCNC (FANUC 32i-MB)CNC (FANUC 32i-MB)
Dimensions79.52" X 65.94" X 79.52"79.52" X 65.94" X 79.52"
Weight7,495 lb7,495 lb

*Machined 95% Aluminum
