Step-Tec spindle (20,000 rpm)
Coolant through spindle (1000 psi)
172 gallon band filter coolant tank
7-pallet changer
3R Dynafix pallet system
Glass scales (x,y,z)
Rotary encoders (b,c)
3D touch probe
Blum laser tool presetter
Blum calibration tool

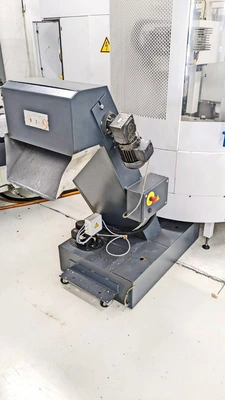

High-capacity chip conveyor
MQL system
Oil mist extractor
External spindle chiller
400V transformer
All documents & parameter backups
| X-Axis | 23.6" | 599.44 mm |
| Y-Axis | 17.7" | 449.58 mm |
| Z-Axis | 17.7" | 449.58 mm |
| B-Axis | -115° ~ +30° | -115° ~ +30° |
| C-Axis | 360° | 360° |
| Power | 40.2 hp | 30 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 30 | 30 |
| Taper | HSK-A63 | HSK-A63 |
| Table-W | 13.78" | 350.01 mm |
| Table-L | 13.78" | 350.01 mm |
| # Axis | 5 | 5 |
| Max Table Load | 442 lb | 442 lb |
| Max Workpiece Height | 17.72" | 450.09 mm |
| Max Worpiece Diamenter | 17.72" | 450.09 mm |
| Rapid Traverse (X/Y/Z) | 866 in/min. | 866 in/min. |
| Rapid Traverse (A/B/C) | 25 / 33 RPM | 25 / 33 RPM |
| Made In | Switzerland | Switzerland |
| Control | CNC (Heidenhain iTNC 530) | CNC (Heidenhain iTNC 530) |
| Dimensions | 165" X 126" X 100" | 165" X 126" X 100" |
| Weight | 16,976 lb | 16,976 lb |
