Full 4th axis
Dual pallet changer
Dual-contact 15000 rpm spindle
Double-decker chip conveyor
Rosedale filter
Overhead shower coolant
Ball-screw cooling
THK double-roller linear guideway system
Fine resolution linear scale feedback
| X-Axis | 18.1" | 459.74 mm |
| Y-Axis | 20.1" | 510.54 mm |
| Z-Axis | 22" | 558.8 mm |
| B-Axis | 360° | 360° |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 50 | 50 |
| Taper | NST No. 40 | NST No. 40 |
| Pallet-W | 12" | 304.8 mm |
| Pallet-L | 12" | 304.8 mm |
| # Axis | 4 | 4 |
| Rapid Traverse (X/Y/Z) | 2,362 in/min. | 2,362 in/min. |
| Made In | Japan | Japan |
| Control | CNC (Arumatik-Mi) | CNC (Arumatik-Mi) |
| Dimensions | 140.7" X 108.6" X 106.3" | 140.7" X 108.6" X 106.3" |
| Weight | 20,020 lb | 20,020 lb |

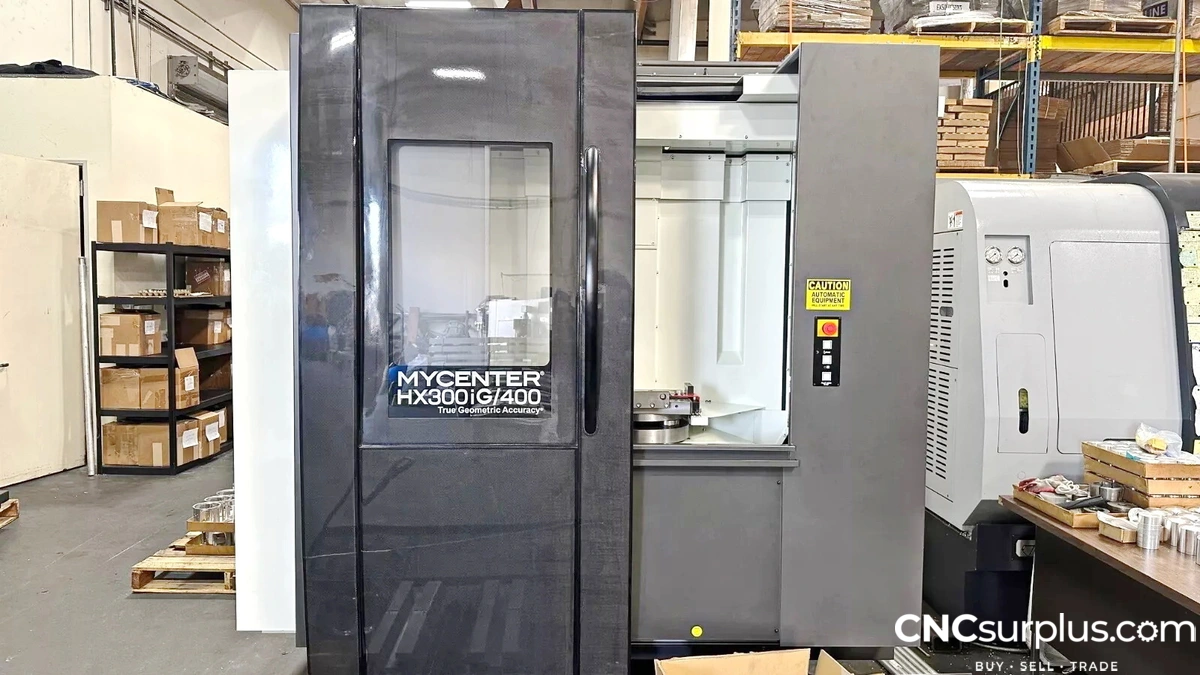

Brand new, FACTORY DEMO machine, still with shipping brackets installed from factory.
May have some power-hours on it, but has never cut chips. Just some spindle warm up cycles.
