Equipment
MACHINING CENTERS
Vertical Machining Centers

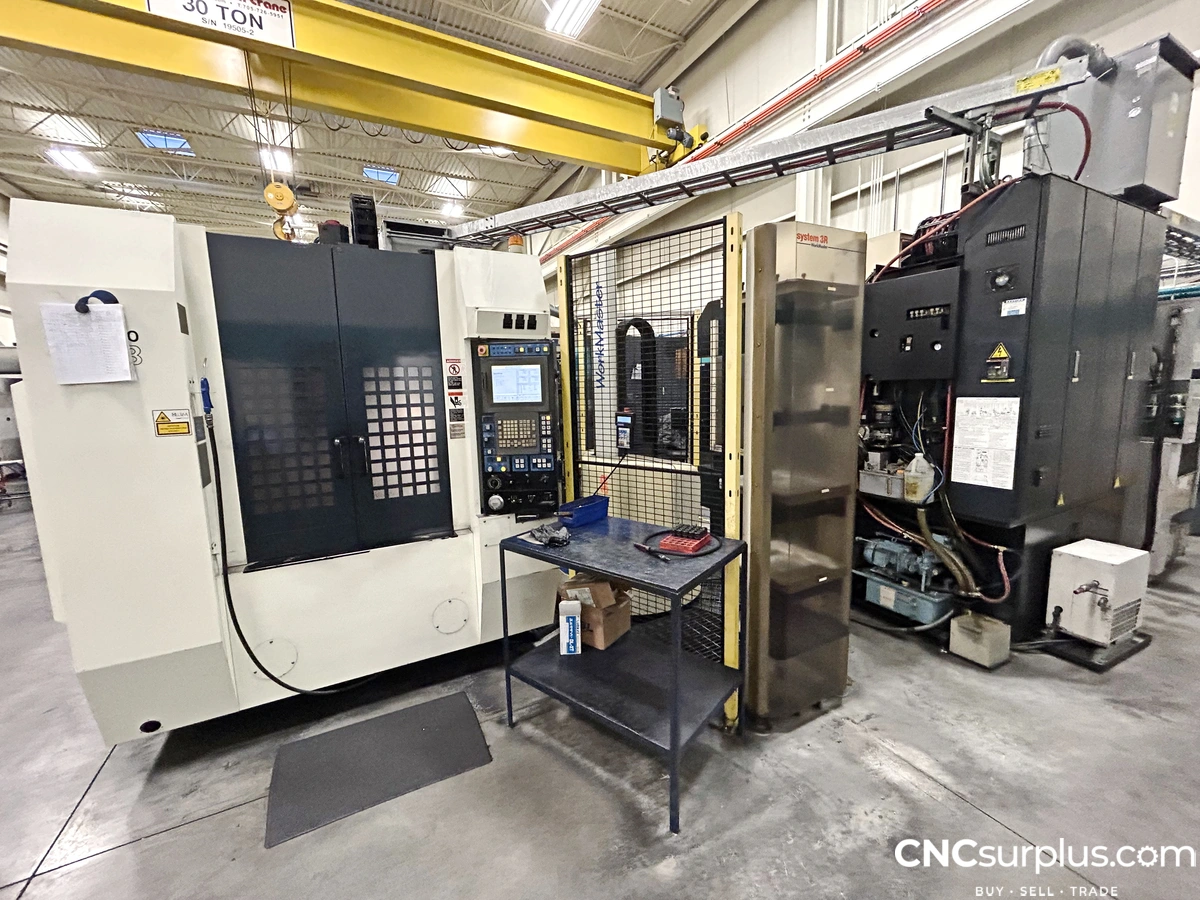

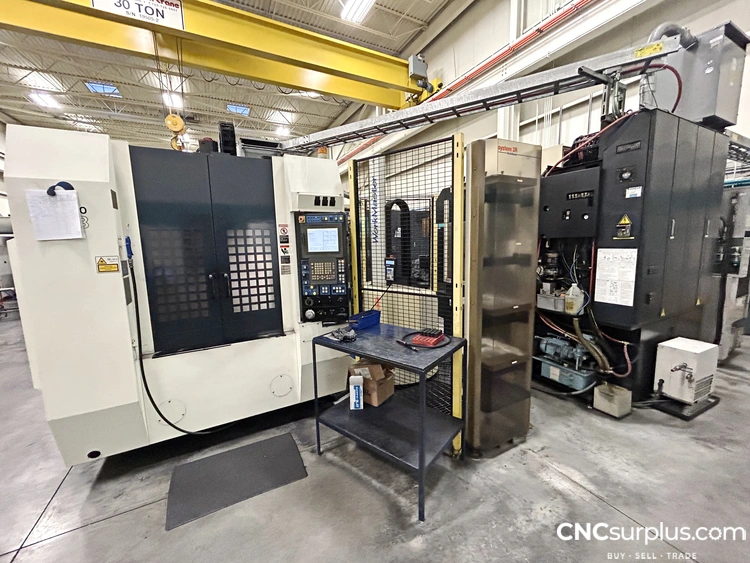

2006 MAKINO E33 VERTICAL CNC MACHINING CENTER

2006 MAKINO E33 VERTICAL CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MAKINO
Model:
E33
Year:
2006
Stock #:
13584
Status:
For Sale
Country:
Canada

Description

2006 Makino E33 Vertical CNC Machining Center, 40000 RPM Spindle, AC Digital Servo Motors, Dust Collector, HSK-32

40,000 rpm spindle
AC digital servo motors
Dust collector
HSK-32

X-Axis25.6"650.24 mm
Y-Axis17.7"449.58 mm
Z-Axis17.7"449.58 mm
Power18.5 hp13.8 kW
RPM40,000 RPM40,000 RPM
# ATC3030
TaperHSK-32HSK-32
Table-W19.7"500.38 mm
Table-L33.5"850.9 mm
# Axis33
Max Table Load1,100 lb499 kg
Distance Spindle Nose to Table23.6"599.44 mm
Rapids (X/Y/Z)1,575 in/min.1,575 in/min.
ControlCNC (Makino Professional 5)CNC (Makino Professional 5)
Dimensions186.1" X 85" X 119.6"186.1" X 85" X 119.6"
Weight16,090 lb16,090 lb

New spindle May 2012

Overview

Type:
Vertical Machining Centers
Manufacturer:
MAKINO
Model:
E33
Year:
2006
Stock #:
13584
Status:
For Sale
Country:
Canada

Description

2006 Makino E33 Vertical CNC Machining Center, 40000 RPM Spindle, AC Digital Servo Motors, Dust Collector, HSK-32

Equipped With

40,000 rpm spindle
AC digital servo motors
Dust collector
HSK-32

Specifications

Imperial

X-Axis25.6"
Y-Axis17.7"
Z-Axis17.7"
Power18.5 hp
RPM40,000 RPM
# ATC30
TaperHSK-32
Table-W19.7"
Table-L33.5"
# Axis3
Max Table Load1,100 lb
Distance Spindle Nose to Table23.6"
Rapids (X/Y/Z)1,575 in/min.
ControlCNC (Makino Professional 5)
Dimensions186.1" X 85" X 119.6"
Weight16,090 lb

New spindle May 2012
