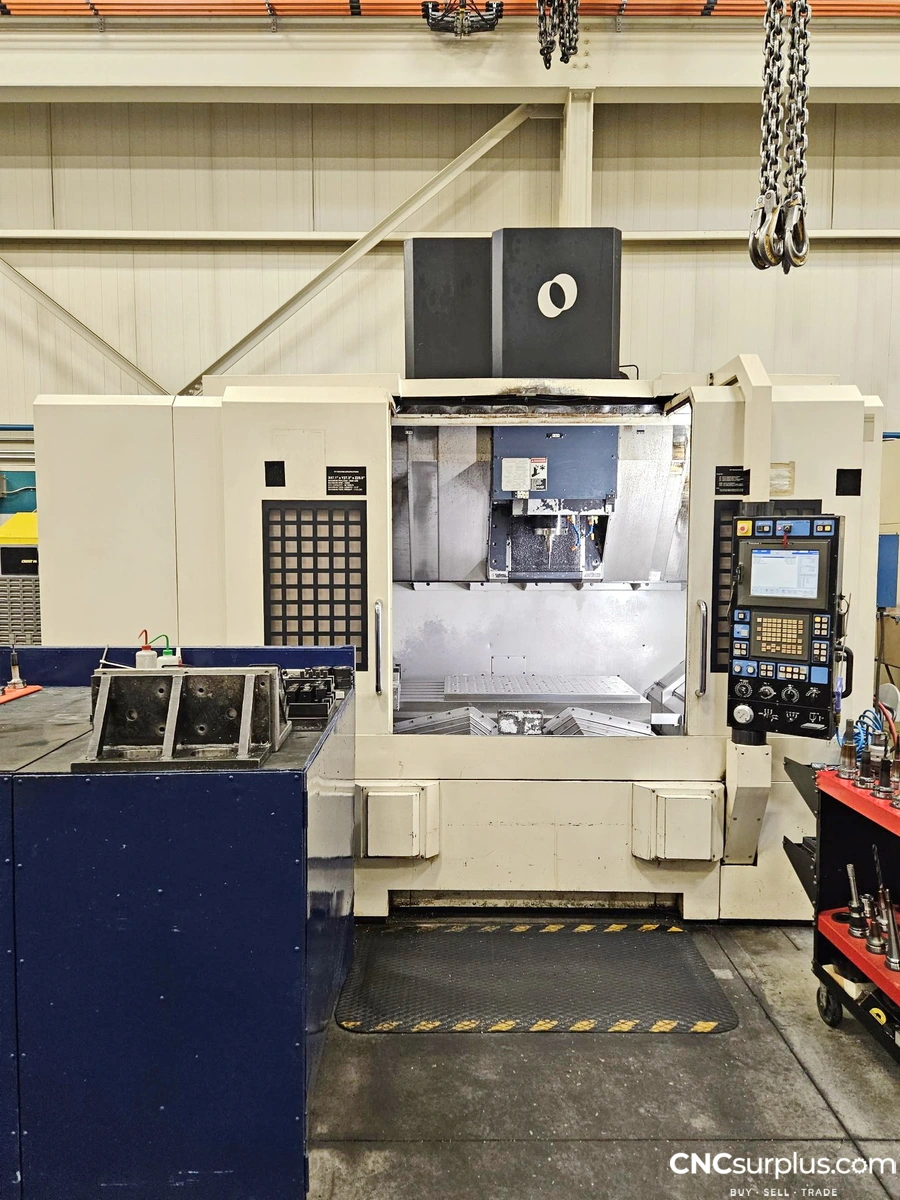

2004 MAKINO V77 VERTICAL CNC MACHINING CENTER

Address: 3040 New Street, Suite 206, Burlington, ON, L7N 1M5, CA
Telephone: 905-635-7530

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

Vertical Machining Centers

Manufacturer:

Model:

V77

Year:

2004

Stock #:

13581

Status:

For Sale

2004 Makino V77 Vertical CNC Machining Center, 20000 RPM Spindle, Laser Tool Measurement System, HSK-63, AC Digital Servo Motors

20,000 rpm spindle
Laser tool measurement system
HSK-63
AC digital servo motors
Side access door for automation

ImperialMetric

X-Axis	47.2"	1,198.9 mm
Y-Axis	27.6"	701.04 mm
Z-Axis	25.6"	650.24 mm
Power	25 hp	18.6 kW
RPM	20,000 RPM	20,000 RPM
# ATC	30	30
Taper	HSK-63	HSK-63
Table-W	27.6"	701.04 mm
Table-L	55.1"	1,399.5 mm
# Axis	3	3
Max Table Load	5,500 lb	2,494.8 kg
Distance Spindle Nose to Table	35.4"	899.16 mm
Rapids (X/Y/Z)	787 in/min.	787 in/min.
Control	CNC (Makino Professional 5)	CNC (Makino Professional 5)
Dimensions	145.6" X 118.1" X 130"	145.6" X 118.1" X 130"
Weight	35,200 lb	35,200 lb

New spindle Mar 2014
