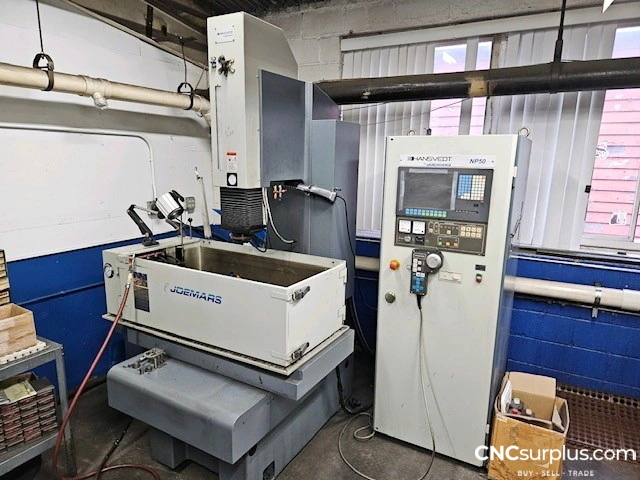

2015 JOEMARS JMNC43A CNC SINK EDM, 50 AMPS
EDM Sinkers
2015 Joemars JMNC43A CNC Sink EDM, 50A NP50 Generator, High-Resolution Linear Scales, High-Precision Ball Screws, Electromagnetic Z-Axis Brake, High-Capacity Lubricator
NP50 Generator (50 amps)
12.1” TFT LCD color panel
High-resolution linear scales
High-precision ball-screw on all axis
Electromagnetic brake (z-axis)
High-capacity lubricator
MPG pendant
| Power Pack | 50 A |
| Table Size-W | 15.74" |
| Table Size-L | 25.59" |
| X-Axis Travel | 15.74" |
| Y-Axis Travel | 11.81" |
| Z-Axis Travel | 13.77" |
| Max Table Load | 1,763 lb |
| Max Electrode Weight | 165 lb |
| Distance Ram Platen to Table | 25.19" |
| Worktank Dimensions | 42.51" X 22.04" X 13.38 |
| Tank Capacity | 84.53 gal |
| Electrode Wear | 0.20 |
| Control | CNC (PC-Based) |
| Dimensions | 74.8" X 58.26" X 92.12 |
| Weight | 3,086 lb |
