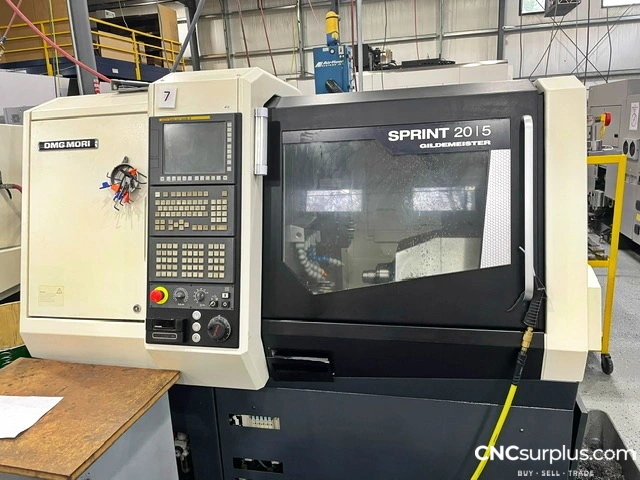

2015 DMG MORI SPRINT 20/5 AUTOMATIC CNC LATHE

2015 DMG MORI SPRINT 20/5 AUTOMATIC CNC LATHE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Swiss Type Automatic Screw Machines
Manufacturer:
DMG MORI
Model:
SPRINT 20/5
Year:
2015
Stock #:
13534
Status:
For Sale

Description

2015 Dmg Mori Sprint 20/5 Automatic CNC Lathe, Sub-Spindle, 6-Axis, Live Tooling, Integrated Spindle Motors W/ C-Axis, Firetrace, Automatic Workpiece Removal, 23 Tool Positions

Sub-spindle
6 linear axis
C-axis
Live tooling
Integrated spindle motors
Firetrace
Automatic workpiece removal
Includes tooling

Spindle Hole Dia0.787"19.99 mm
Max Machining Length23.62"599.95 mm
Power (Main)5 hp3.7 kW
Power (Sub)3 hp2.2 kW
Power (Driven Tools)1.7 / 1.6 hp1.7 / 1.6 hp
# Axis66
RPM (Main)10,000 RPM10,000 RPM
RPM (Sub)10,000 RPM10,000 RPM
RPM (Driven Tools)6000 / 3450 RPM6000 / 3450 RPM
Max Bar (Main)0.787"19.99 mm
Max Bar (Sub0.787"19.99 mm
Z1 Travel2.36"59.944 mm
X1/Y1 Travel1.97" / 12.8"1.97" / 12.8"
X2/Z2 Travel8.66" / 6.69"8.66" / 6.69"
C-Axis0.001°0.001°
Fixed Turn Tools (Slide 1)66
Driven Tools2+22+2
Tools Front Mach/Back-Work (Slide 1)6 / 36 / 3
Fixed Tools (Slide Y2)44
Rapid Traverse (X1/Z1/X2/Z2)105 in/min.105 in/min.
Rapid Traverse (Y1/Y2)105 in/min.105 in/min.
Made InItalyItaly
ControlCNC (FANUC 32i-B)CNC (FANUC 32i-B)
Dimensions78.43" X 47.64" X 83.3978.43" X 47.64" X 83.39
Weight5,071 lb5,071 lb
