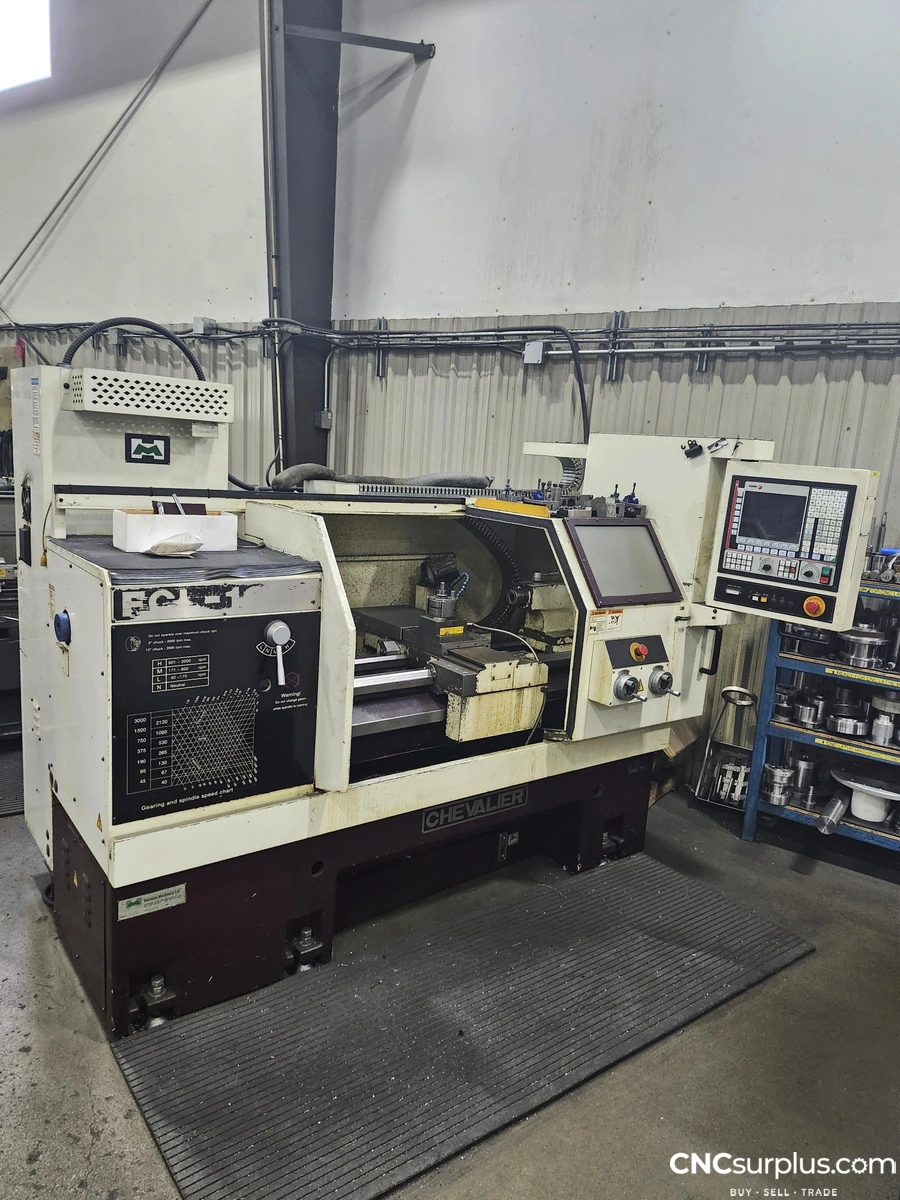

2002 CHEVALIER FCL-1840F CNC TEACH LATHE

Have one to sell?

sales@cncsurplus.com

ConditionUsed

Quantity

1 available

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (1)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (2)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (3)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (4)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (5)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (6)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (7)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (8)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp. (9)

2002 CHEVALIER FCL-1840F CNC Lathes | CNCsurplus, A Div. of Comtex Leasing Corp.

Have one to sell?

Overview

Type:

CNC Lathes

Manufacturer:

Model:

FCL-1840F

Year:

2002

Stock #:

13513

Status:

For Sale

Description

2002 Chevalier FCL-1840F CNC Teach Lathe, Tailstock, Coolant System, 4-Station Toolpost, Automatic Lubrication

Equipped With

Tailstock
Automatic lubrication
Coolant system
4-station toolpost
Top-slide travel (6")
RS-232 port

Specifications

ImperialMetric

Swing	18.1"	459.74 mm
Swing Over Cross Slide	9"	228.6 mm
Max Turning Dia	18"	457.2 mm
Center Distance	40"	1,016 mm
Center Height	9"	228.6 mm
# Axis	2	2
Chuck Size	8"	203.2 mm
Bar Capacity	1.75"	44.45 mm
Spindle Bore	2.25"	5.7 cm
Power	7.5 hp	5.6 kW
Max RPM	2,000 RPM	2,000 RPM
X-Axis Travel	10"	254 mm
Z-Axis Travel	39"	990.6 mm
Tailstock	Yes	Yes
Quill Dia	2.5"	63.5 mm
Tailstock Travel	6"	152.4 mm
Tailstock Taper	MT4	MT4
Live Tooling	No	No
Sub Spindle	No	No
Rapid Traverse (X/Z)	200 / 400 in/min.	200 / 400 in/min.
Made In	Taiwan	Taiwan
Control	CNC (Fagor)	CNC (Fagor)
Dimensions	86" X 53" X 72"	86" X 53" X 72"
Weight	5,000 lb	5,000 lb
