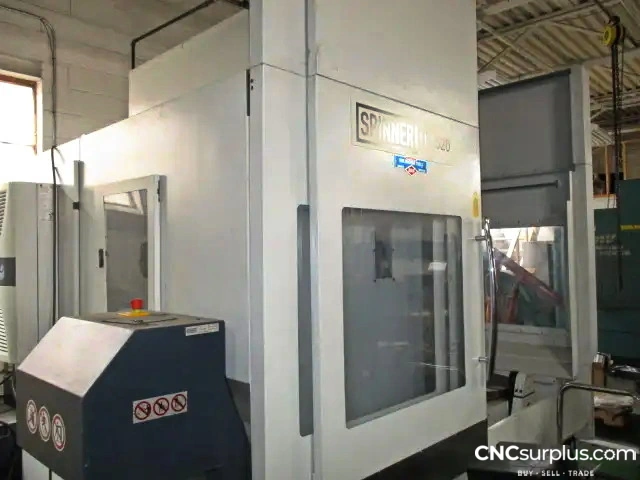

2014 SPINNER U5-1520 UNIVERSAL 5-AXIS CNC MACHINING CENTER

2014 SPINNER U5-1520 UNIVERSAL 5-AXIS CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
$99,500.00 USD
Have one to sell?

Overview

Type:
Universal Machining Centers
Manufacturer:
SPINNER
Model:
U5 1520
Condition:
Excellent
Year:
2014
Stock #:
13508
Status:
For Sale
Country:
Canada

Description

2014 Spinner U5-1520 Universal 5-Axis CNC Machining Center, TSC, Fixed Table, Tilting Rotary Table, Glass Scales, Wall-Mounted Cooling Unit, Chip Conveyor

Through spindle coolant (320 psi)
12,000 rpm spindle option
Fixed & rotary table
Linear glass scales (x, y, z)
Rittal wall-mounted cooling unit
Chip conveyor

X-Axis59.84"1,519.9 mm
Y-Axis20.47"519.94 mm
Z-Axis18.11"459.99 mm
B-Axis-60° / +140°-60° / +140°
C-Axis360°360°
# Axis55
Power29.5 hp22 kW
RPM12,000 RPM12,000 RPM
# ATC3232
TaperSK-40SK-40
Table-W21.25"539.75 mm
Table-L36.22"919.99 mm
Spindle Nose to Platter24"609.6 mm
Rotary Table Dia25.59"649.99 mm
Rapid Traverse (X/Y/Z)1,181 in/min.1,181 in/min.
Made InGermanyGermany
ControlCNC (Heidenhain TNC 620)CNC (Heidenhain TNC 620)
Dimensions178.34" X 97.24" X 119.48"178.34" X 97.24" X 119.48"
Weight18,739 lb18,739 lb

***Like new
