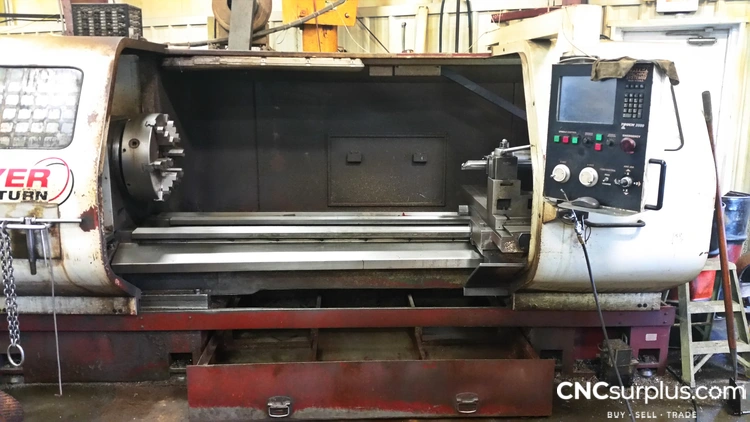

20" 6-jaw chuck
6" bore option
Tool post
Chip conveyor
Steady rest
Tailstock
Enclosure
| Swing | 30" | 762 mm |
| Swing Over Cross Slide | 18" | 457.2 mm |
| Center Distance | 80" | 2,032 mm |
| Center Height | 15" | 381 mm |
| Max Weight Chuck Work | 1,200 lb | 544.3 kg |
| Max Weight Shaft Work | 3,000 lb | 1,360.8 kg |
| # Axis | 2 | 2 |
| Chuck Size | 20" | 508 mm |
| Spindle Bore | 6" | 15.2 cm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Spindle Nose | D1-11 Camlock | D1-11 Camlock |
| X-Axis Travel | 16" | 406.4 mm |
| Z-Axis Travel | 57" | 1,447.8 mm |
| Tailstock | Yes | Yes |
| Quill Dia | 4.1" | 104.14 mm |
| Quill Travel | 8" | 203.2 mm |
| Tailstock Taper | MT5 | MT5 |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 400 in/min. | 400 in/min. |
| Made In | United States | United States |
| Control | CNC (Fryer Touch 2000i) | CNC (Fryer Touch 2000i) |
| Dimensions | 175" X 82" X 78" | 175" X 82" X 78" |
| Weight | 15,000 lb | 15,000 lb |
Computer replaced in 2021.
