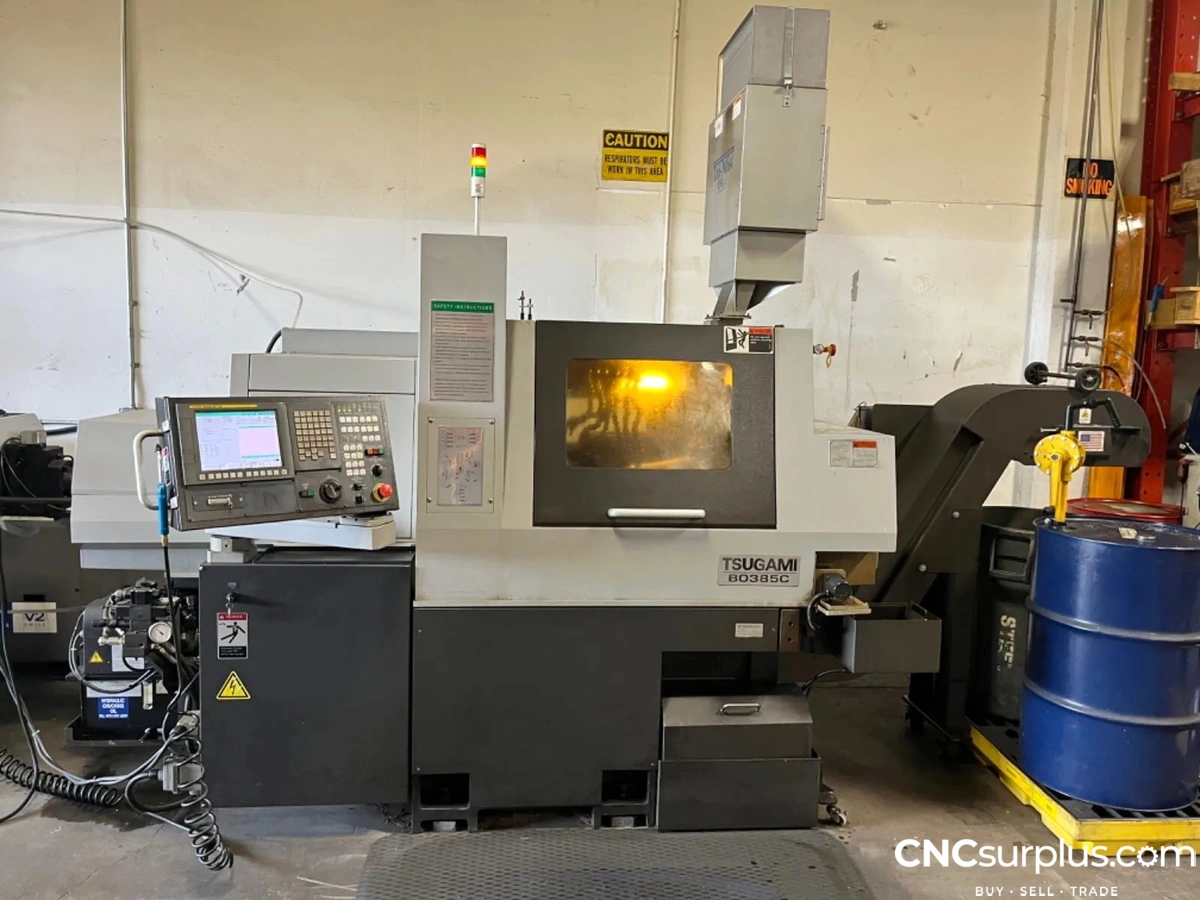

2018 TSUGAMI B0385C CHUCKER SWISS-TYPE 5-AXIS CNC LATHE
Have one to sell?
ConditionUsed
1 available
2018 Tsugami B0385C Chucker Swiss-Type CNC Lathe, 5-Axis, Tool Spindle, Sub-Spindle, Bar Feeder, Fire System, 2000 PSI Coolant Pump, Mist Collector, Chip Conveyor, Additional Liners, Tooling
5-Axis
Tool spindle (6000 rpm)
Sub-spindle
Bar feeder
Fire system
High-pressure coolant pump (2000 psi)
Used only oil for coolant
HEPA filter mist collection
Spindle cooling unit
Chip conveyor
Liners & tooling included
2018 Tsugami B0385C Chucker Swiss-Type CNC Lathe, 5-Axis, Tool Spindle, Sub-Spindle, Bar Feeder, Fire System, 2000 PSI Coolant Pump, Mist Collector, Chip Conveyor, Additional Liners, Tooling
5-Axis
Tool spindle (6000 rpm)
Sub-spindle
Bar feeder
Fire system
High-pressure coolant pump (2000 psi)
Used only oil for coolant
HEPA filter mist collection
Spindle cooling unit
Chip conveyor
Liners & tooling included
Imperial
| Spindle Hole Dia | 0.0587" |
| Max Machining Length | 2.362" |
| Max Drilling Dia (Main) | 0.472" |
| Max Tapping Dia (Main) | M12 |
| Max Chucking Dia (Sub) | 1.49" |
| Max Drilling Dia (Sub) | 0.472" |
| Max Tapping Dia (Sub) | M12 |
| Max Cross Drilling Dia | 0.314" |
| Max Cross Tapping Dia | M6 |
| Tool Spindle Slot Cutter Dia | 1.771" |
| Power (Main) | 7.4 hp |
| Power (Sub) | 5 hp |
| # Axis | 5 |
| RPM (Main) | 4,500 RPM |
| RPM (Sub) | 7,000 RPM |
| RPM (Rotary Tool) | 6,000 RPM |

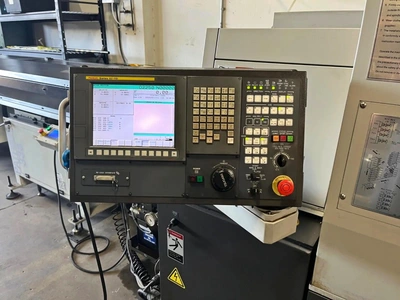

| Control | CNC (FANUC OI-TD) |
| Dimensions | 107.08" X 50.39" X 75.98" |
| Weight | 8,377 lb |
