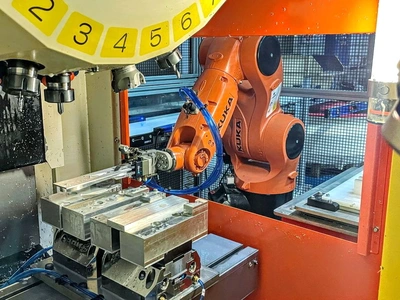

6-axis robot
Conveyor w/ vibratory tumbler
(2) Schunk pneumatic vises
Chip conveyor
Coolant tank
| X-axis | 11.81" | 299.97 mm |
| Y-axis | 11.81" | 299.97 mm |
| Z-axis | 12.9 mm | 0.5079" |
| Table-W | 12.99" | 329.95 mm |
| Table-L | 24.81" | 630.17 mm |
| Max Table Load | 660 lb | 299.4 kg |
| RPM | 10,000 RPM | 10,000 RPM |
| RPM (Tapping) | 6,000 RPM | 6,000 RPM |
| Taper | BT-30 | BT-30 |
| Power | 7.5 hp | 5.6 kW |
| # ATC | 21 | 21 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 4,400 lb | 4,400 lb |
