NC rotary table (c-axis)
Swivel milling head (b-axis)
Chip conveyor
Heidenhain TT130 tool measuring probe
Heidenhain infrared touch probe
Electronic handwheel
Auto-shutoff
3d quickset
| X-Axis | 24.8" | 629.92 mm |
| Y-Axis | 22.04" | 559.82 mm |
| Z-Axis | 22.04" | 559.82 mm |
| B-Axis | +30° / –120° | +30° / –120° |
| C-Axis | 360° | 360° |
| # Axis | 5 | 5 |
| Power | 20 hp | 14.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |

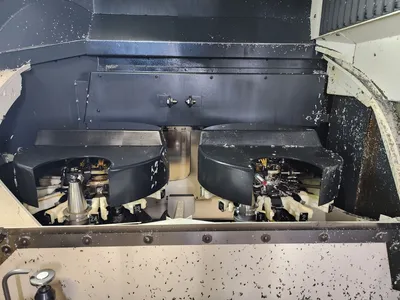

| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 39.37" | 1,000 mm |
| Table Dia | 23.62" | 599.95 mm |
| Max Table Load | 1,102 lb | 499.9 kg |
| Rapid Traverse (X/Y/Z) | 1,181 in/min. | 1,181 in/min. |
| Made In | Germany | Germany |
| Control | CNC (Heidenhain iTNC 530) | CNC (Heidenhain iTNC 530) |
| Dimensions | 113.38" X 73.22" X 88.26" | 113.38" X 73.22" X 88.26" |
| Weight | 14,991 lb | 14,991 lb |
