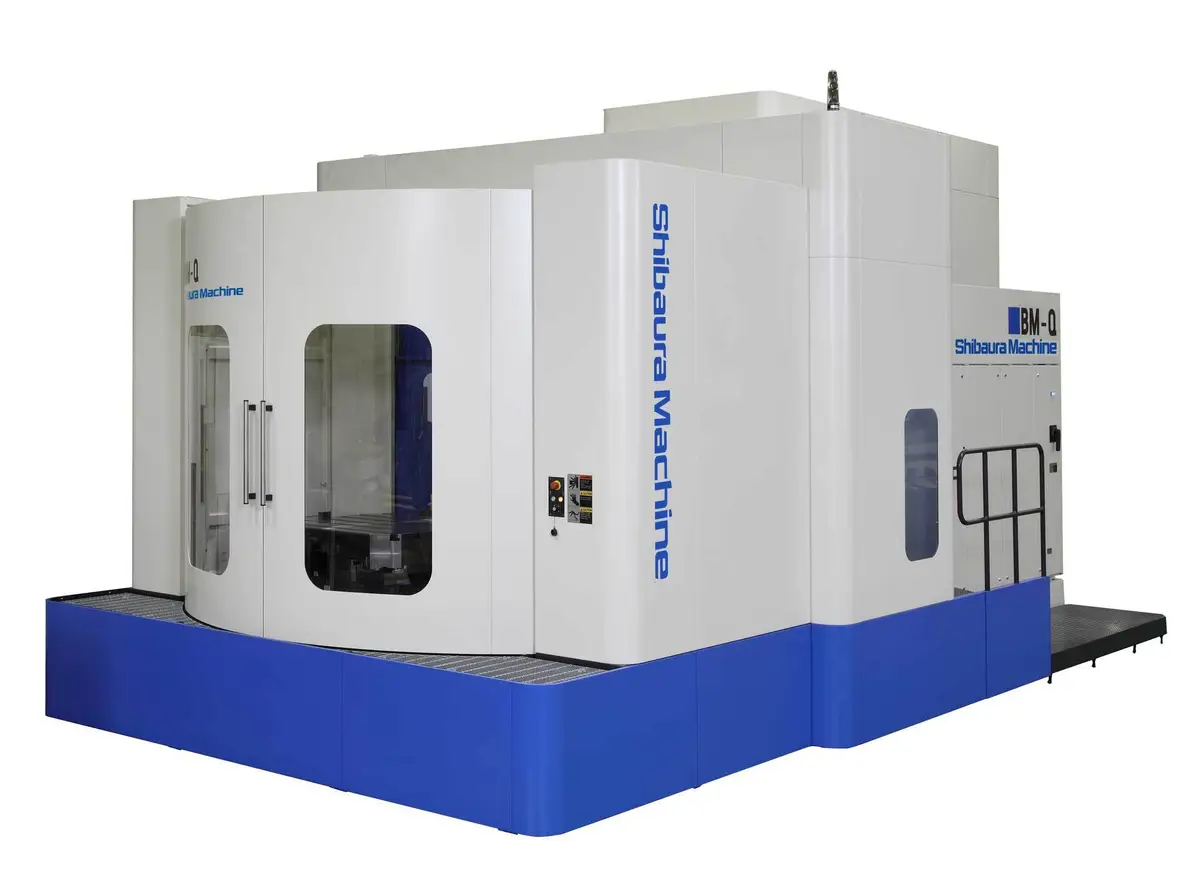

SHIBAURA MACHINE BM-1000Q HORIZONTAL CNC MACHINING CENTER

SHIBAURA MACHINE BM-1000Q HORIZONTAL CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
SHIBAURA MACHINE
Model:
BM-1000Q
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine BM-1000Q Horizontal CNC Machining Center, Full Contouring B-axis Rotary Table, BIG-PLUS Dual-Contact Spindle, W-Axis, Dual-Pallet Changer, Oil Cooler

⌀7.9" quill
Heavy duty w-axis 11.8" travel
Full contouring b-axis rotary table
BIG-PLUS dual-contact spindle
Dual-pallet changer
Twin-drive ball screw mechanism (y-axis)
Oil cooler
Lubrication unit (b-axis)

X-Axis70.9"1,800.9 mm
Y-Axis63"1,600.2 mm
Z-Axis63"1,600.2 mm
Power40.2 hp30 kW
RPM6,000 RPM6,000 RPM
# ATC6060
Taper7/24 Taper # 507/24 Taper # 50
Pallet-W39.4"1,000.8 mm
Pallet-L39.4"1,000.8 mm
Max Pallet Load6,613.9 lb3,000 kg
Spindle To Pallet Center78.7"1,999 mm
# Axis55
Rapid Traverse (X/Y/Z)1,574.8 in/min1,574.8 in/min
ControlCNC (TOSNUC PX200)CNC (TOSNUC PX200)
Dimensions314.6" X 217.9 X 170.5"314.6" X 217.9 X 170.5"
Weight77,161 lb77,161 lb
