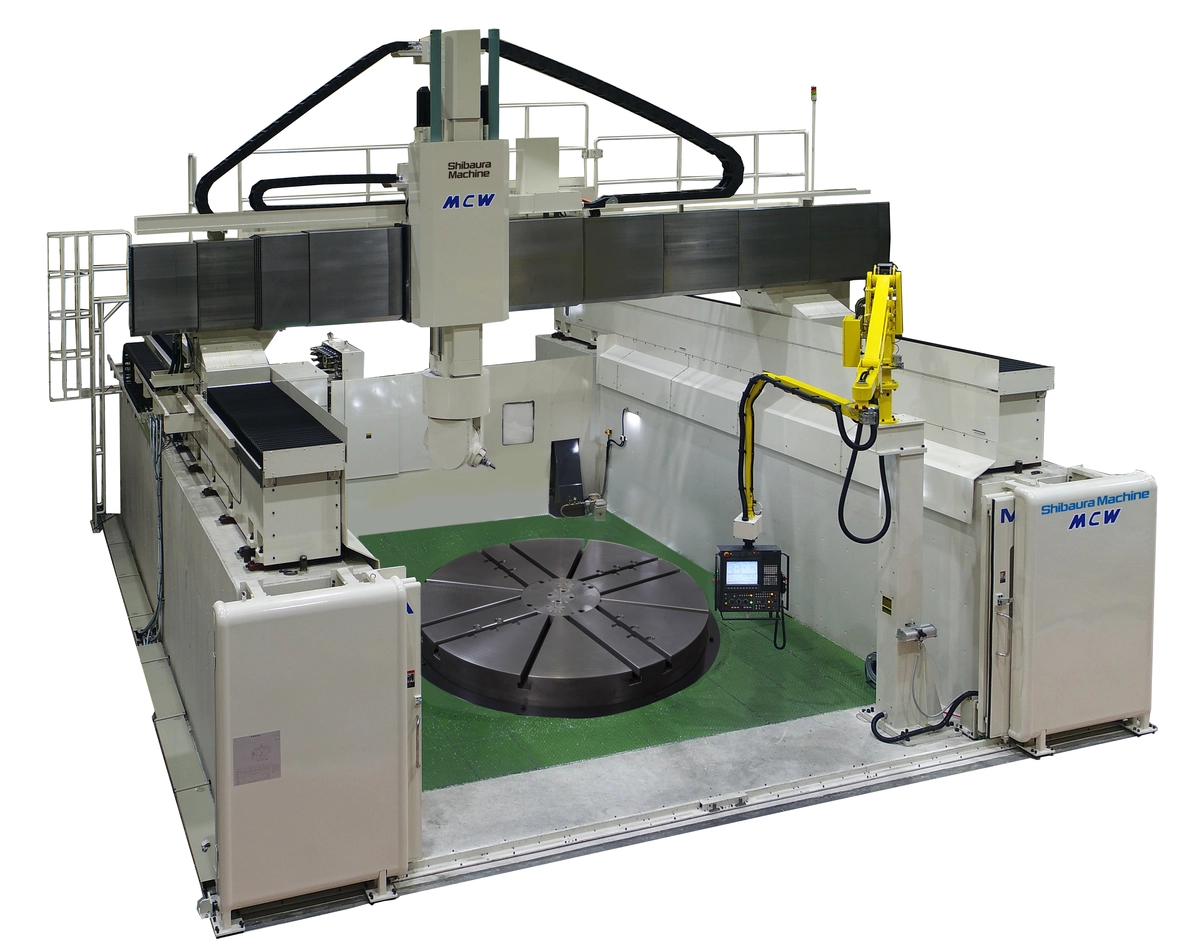

SHIBAURA MACHINE MCW-4624 DOUBLE COLUMN TYPE CNC MACHINING CENTER

SHIBAURA MACHINE MCW-4624 DOUBLE COLUMN TYPE CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
SHIBAURA MACHINE
Model:
MCW-4624
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine MCW-4624 Double Column Type CNC Machining Center, TSC, Table Lubricant Oil Cooling Unit

Through spindle coolant
Table lubricant oil cooling unit
Scale feedback on x/z/c (option)
+9.8" high-type column, +9.8" ram travel extend (option)
2-pallet APC, multi-pallet magazine system, 4/6/8 Pallets (option)
Automatic measuring RENISHAW probe (option)
Automatic tool setting RENISHAW probe (option)

X-Axis137.8"3,500.1 mm
Y-Axis145.7"3,700.8 mm
Z-Axis35.4"899.16 mm
Power40 hp29.8 kW
RPM4,000 RPM4,000 RPM
# ATC6060
Taper7/24 #507/24 #50
Table-W94.5"2,400.3 mm
Table-L126"3,200.4 mm
Distance Between Columns180.3"4,579.6 mm
Distance Table Top To Spindle Nose53.5"1,358.9 mm
Max Table Load2,048 lb/sqft.2,048 lb/sqft.
Rapid Traverse (X/Y/Z)984 / 984 / 393.6 in/min.984 / 984 / 393.6 in/min.
ControlCNC (Tosnuc PX-100)CNC (Tosnuc PX-100)
Dimensions389.7" X 326.8" X 204.7"389.7" X 326.8" X 204.7"
