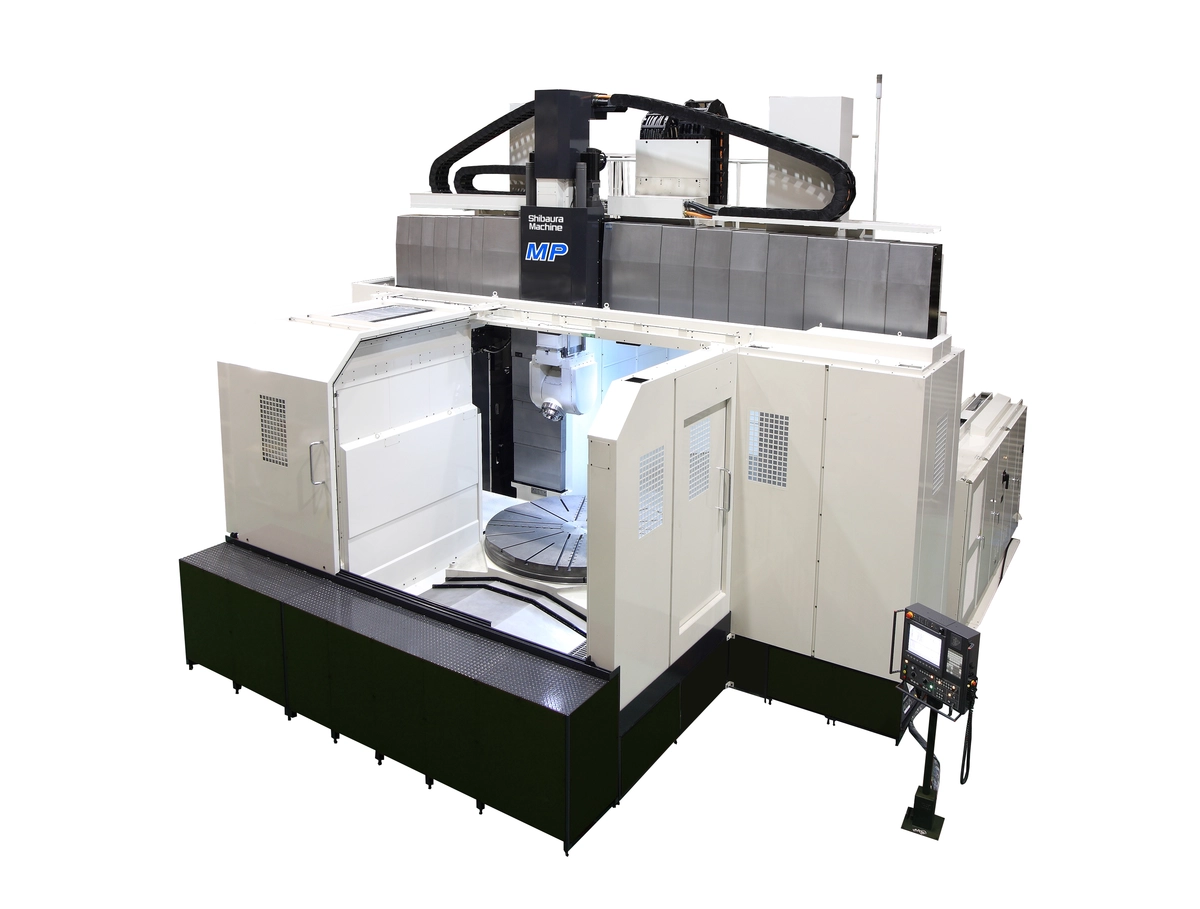

SHIBAURA MACHINE MP-2620(U) DOUBLE COLUMN TYPE CNC MACHINING CENTER

SHIBAURA MACHINE MP-2620(U) DOUBLE COLUMN TYPE CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
SHIBAURA MACHINE
Model:
MP-2620(U)
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine MP-2620(U) Double Column Type CNC Machining Center, Big-Plus Spindle, Snout 240 Designed For Automatic Attachment Tool Changer, Spindle Head Cooling Unit, Scale Feedback On All Axis

Big-plus spindle
Snout 240 designed for automatic attachment tool changer (AATC)
Spindle head cooling unit
Scale feedback x/y/z/c axis
Through spindle coolant (option)
Automatic attachment indexing device 5° or 1° (option)
Automatic attachment changer (aac) (option)
1° indexing head designed for AATC (option)
4-axis head w/ automatic attachment tool changer (option)
Z-axis thermal displacement compensation function (option)

X-Axis98.4"2,499.4 mm
Y-Axis133.8"3,398.5 mm
Z-Axis31.5"800.1 mm
W-Axis39.4"1,000.8 mm
C-Axis360°360°
Power35 hp26.1 kW
Power (Table)50 hp37.3 kW
RPM10,000 RPM10,000 RPM
# ATC6060
Table Dia78.7"1,999 mm
Distance Table Top To Spindle Nose70.2"1,783.1 mm
Table Speed250 RPM250 RPM
Max Table Load22,046 lb9,999.9 kg
Rapid Traverse (X/Y/Z)1,572 in/min.1,572 in/min.
ControlCNC (Tosnuc PX-100)CNC (Tosnuc PX-100)
Dimensions393.7" X 334.6" X 260"393.7" X 334.6" X 260"
