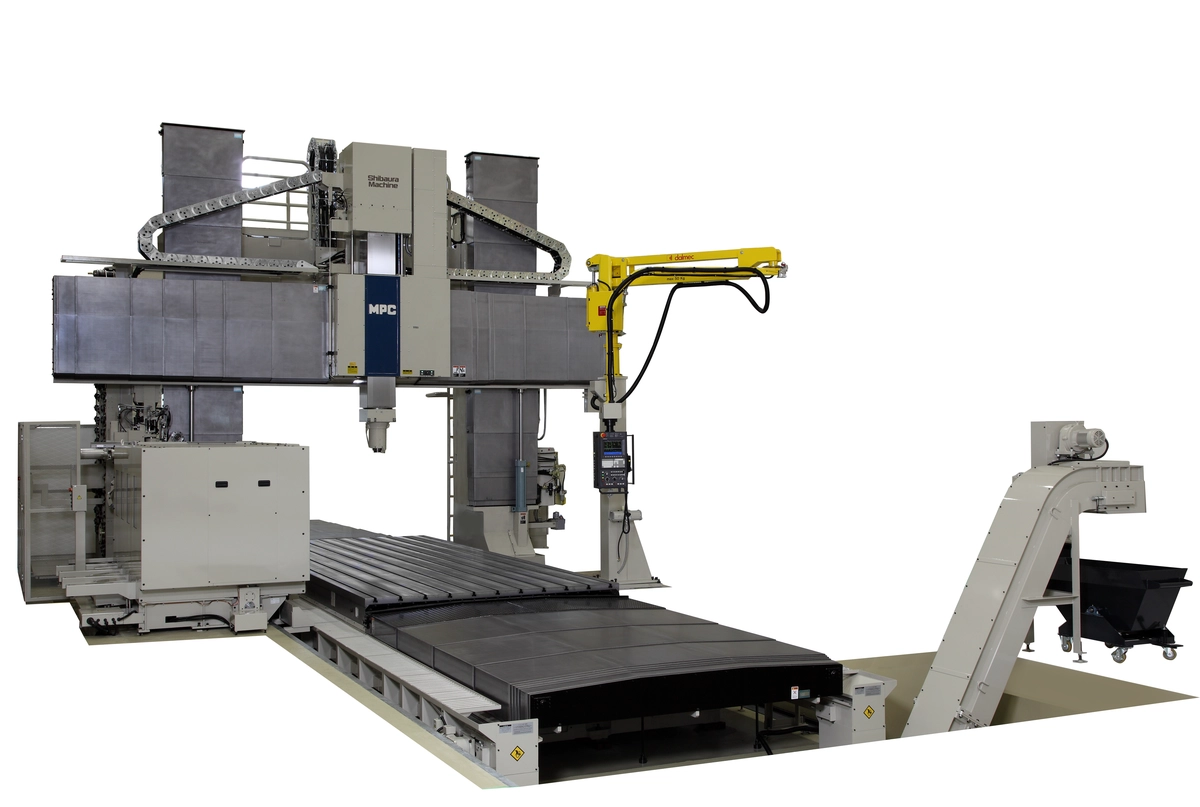

SHIBAURA MACHINE MPC-B DOUBLE COLUMN TYPE CNC MACHINING CENTER

SHIBAURA MACHINE MPC-B DOUBLE COLUMN TYPE CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
SHIBAURA MACHINE
Model:
MPC-B
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine MPC-B Double Column Type CNC Machining Center, Ram-type Spindle Head, 5-face Cutter Head, 4-Pos Automatic Attachment Indexing Device, Automatic Tool Loading/Unloading Device, Hydraulic Ram Balancing Cylinder

Ram-type spindle head (attachment change capable)
5-face cutter head designed for AATC
Automatic attachment indexing device (4-pos at 90°)
Oil mist lubrication unit
Automatic tool loading/unloading
Hydraulic unit
Hydraulic ram balancing cylinder
Automatic attachment changer (aac) (option)
Automatic attachment tool changer (AATC) (option)
Automatic attachment indexing device (aai - 5) (option)
Direct table change type automatic workpiece changer (DTC/AWC) (option)
Angle head, snout, universal head (option)

X-Axis196.8" ~ 354.3"196.8" ~ 354.3"
Y-Axis133.8" / 153.5" / 173.2"133.8" / 153.5" / 173.2"
Z-Axis35.4"899.16 mm
W-Axis35.4" / 63.0" / 90.6"35.4" / 63.0" / 90.6"
Power40 hp29.8 kW
RPM3,000 RPM3,000 RPM
# ATC6060
Table-W86.6" / 106.3" / 122.4"86.6" / 106.3" / 122.4"
Table-L157.5" / 196.8" / 255.9" / 34.9"157.5" / 196.8" / 255.9" / 34.9"
Distance Between Columns102.4" / 122" / 141.7"102.4" / 122" / 141.7"
Distance Table To Spindle Nose68.9" / 96.5" / 124"68.9" / 96.5" / 124"
Max Table Load66,000 / 77,000 / 88,000 lb66,000 / 77,000 / 88,000 lb
Rapid Traverse (X/Y/Z)787 / 787 / 393.7 in/min.787 / 787 / 393.7 in/min.
Rapid Traverse W118 in/min.118 in/min.
ControlCNC (Fanuc)CNC (Fanuc)
