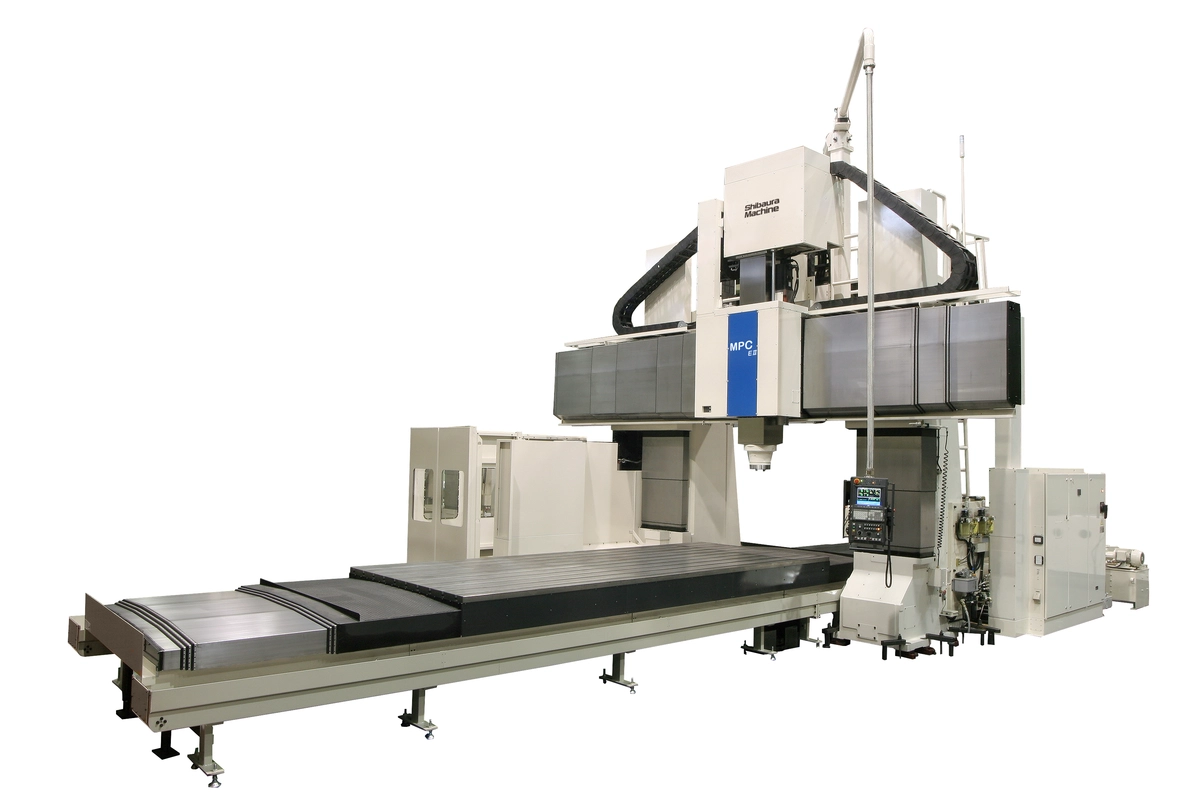

SHIBAURA MACHINE MPC-EII DOUBLE COLUMN TYPE CNC MACHINING CENTER

SHIBAURA MACHINE MPC-EII DOUBLE COLUMN TYPE CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
SHIBAURA MACHINE
Model:
MPC-EII
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine MPC-EII Double Column Type CNC Machining Center, TSC, 4-Pos Automatic Attachment Indexing Device, Table Lubricant Oil Cooling Unit, Hydraulic Unit, Ram Balancing Mechanism

Through spindle coolant
Table lubricant oil cooling unit
Automatic attachment indexing device (4-pos at 90°)
Hydraulic unit
Ram balancing mechanism
Scale feedback on x/z/c (option)
+9.8" high type column, +9.8" ram travel extend (option)
2-pallet APC, multi-pallet magazine system, 4/6/8 pallets (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw probe (option)

X-Axis175.5" ~ 351.0"175.5" ~ 351.0"
Y-Axis113.1" / 132.6" / 152.1" / 171.6"113.1" / 132.6" / 152.1" / 171.6"
Z-Axis35.1"891.54 mm
W-Axis39.4" / 59"39.4" / 59"
Power40 hp29.8 kW
RPM4000 / 6000 RPM4000 / 6000 RPM
# ATC6060
Bearing Inside Diameter3.9"99.06 mm
Taper7/24 #507/24 #50
Table-W70.8" / 78.7" / 98.4" / 106.2" / 122"70.8" / 78.7" / 98.4" / 106.2" / 122"
Table-L157.4" / 196.8" / 236.2" / 315"157.4" / 196.8" / 236.2" / 315"
Distance Between Columns81.9" / 101.4" / 120.9" / 140.4"81.9" / 101.4" / 120.9" / 140.4"
Distance Table To Spindle Nose68.2" / 85.6" / 87.7"68.2" / 85.6" / 87.7"
Max Table Load44,000 lb ~ 88,000 lb44,000 lb ~ 88,000 lb
Rapid Traverse (X/Y/Z)984 / 984 / 393.7 in/min.984 / 984 / 393.7 in/min.
Rapid Traverse W39.3 in/min.39.3 in/min.
ControlCNC (TOSNUC 999)CNC (TOSNUC 999)
