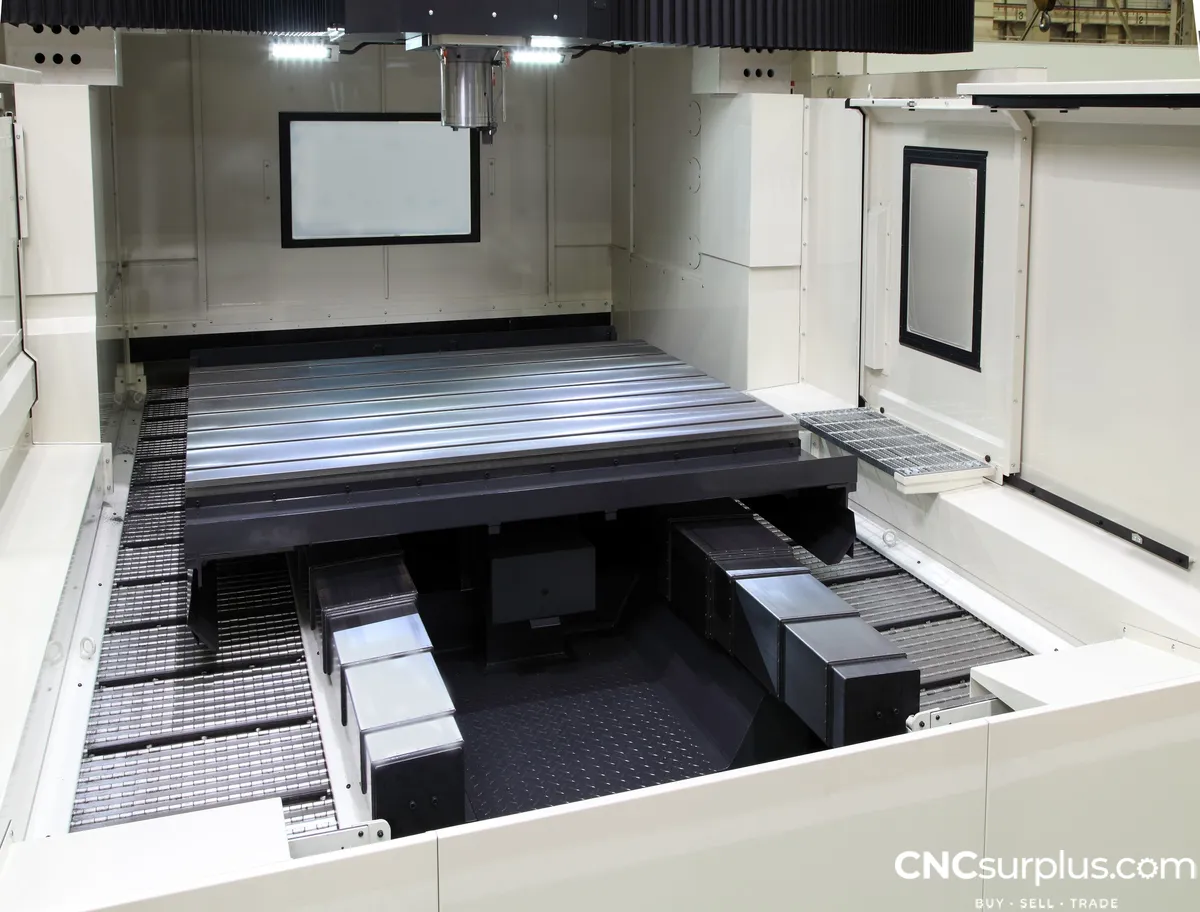

SHIBAURA MACHINE MPF DOUBLE COLUMN TYPE CNC MACHINING CENTER

SHIBAURA MACHINE MPF DOUBLE COLUMN TYPE CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
SHIBAURA MACHINE
Model:
MPF
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine MPF Double Column Type CNC Machining Center, Big-Plus Spindle, TSC, Tool Clamping/Unclamping, Table Lubricant Oil Cooling Unit, Hydraulic Unit

Big-plus spindle
Through spindle coolant
Table lubricant oil cooling unit
Tool clamping/unclamping
Hydraulic unit
Scale feedback x/z/c (option)
+9.8" high-type column | +9.8" ram travel extend (option)
2 pallet APC, multi-pallet magazine system, 4/6/8 pallets (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw probe (option)

X-Axis55.1" ~ 216.5"55.1" ~ 216.5"
Y-Axis82.7" / 102.4" / 122"82.7" / 102.4" / 122"
Z-Axis28.4"721.36 mm
W-Axis0 / 19.6"0 / 19.6"
Power35 hp26.1 kW
RPM10,000 RPM10,000 RPM
# ATC6060
Bearing Inside Diameter3.937"100 mm
Taper7/24 #507/24 #50
Table-W55.11" / 63" / 118.11" X 157.48" X55.11" / 63" / 118.11" X 157.48" X
Table-L70.86" / 78.74" / 98.42" / 110.23"70.86" / 78.74" / 98.42" / 110.23"
Distance Between Columns82.7" / 102.4" / 122"82.7" / 102.4" / 122"
Max Table Load22,000 / 44,000 lb22,000 / 44,000 lb
Rapid Traverse (X/Y/Z)1,181 / 1,181 / 787 in/min.1,181 / 1,181 / 787 in/min.
ControlCNC (Tosnuc PX-100)CNC (Tosnuc PX-100)
