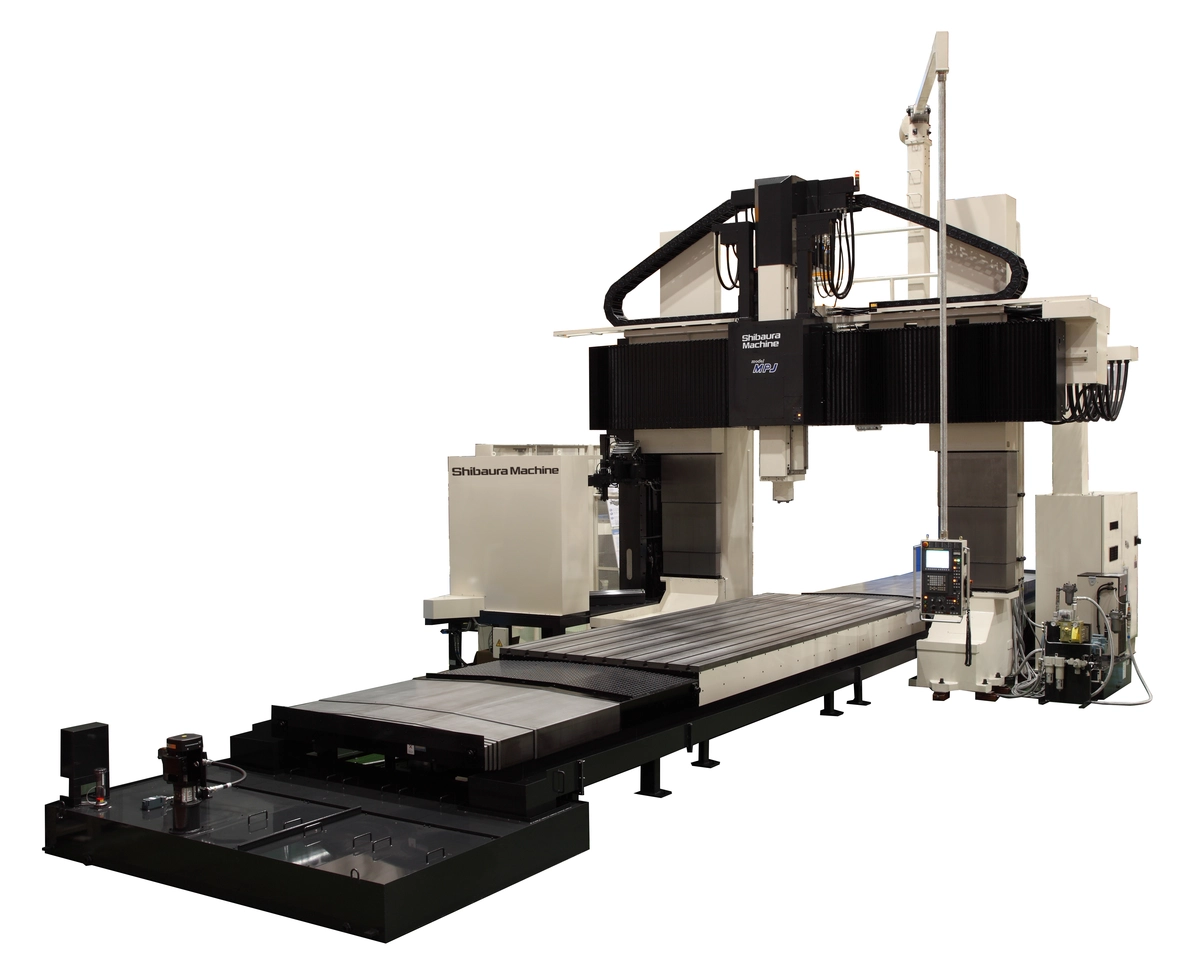

SHIBAURA MACHINE MPJ-M DOUBLE COLUMN TYPE CNC MACHINING CENTER

SHIBAURA MACHINE MPJ-M DOUBLE COLUMN TYPE CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
SHIBAURA MACHINE
Model:
MPJ-M
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine MPJ-M Double-Column Type CNC Machining Center, TSC, Big-Plus Spindle, 4-Pos Automatic Attachment Indexing Device, Ram-type Spindle Head, W-Axis NC Positioning, Table Lubricant Oil Cooling Unit, Tool Clamping/Unclamping, Ram Cooling Oil Temperature Regulator Unit

Big-plus spindle
Through spindle coolant
Automatic attachment indexing device (4-pos at 90°)
RAM-type Spindle Head (Attachment change capable)
W-axis NC positioning
Table Lubricant Oil Cooling unit
Tool clamping/unclamping
Ram cooling oil temperature regulator unit
Scale feedback on X and Z Linear axes, and C Rotary axis. (option)
Automatic Attachment Changer (AAC) (option)
Automatic Attachment Tool Changer (AATC) (option)
Automatic attachment indexing device 5° and 1° (option)
1° indexing head designed for AATC (option)
Angle head and Snout (option)

X-Axis177.2" / 216.5" / 255.9"177.2" / 216.5" / 255.9"
Y-Axis118.1" / 137.8"118.1" / 137.8"
Z-Axis31.5"800.1 mm
W-Axis39.4" / 59"39.4" / 59"
Power60 hp44.7 kW
RPM10,000 RPM10,000 RPM
# ATC6060
Bearing Inside Diameter3.94"100.08 mm
Taper7/24 #507/24 #50
Table-W78.7" / 98.43"78.7" / 98.43"
Table-L157.48" / 196.85" / 236.22"157.48" / 196.85" / 236.22"
Distance Between Columns102.3" / 122"102.3" / 122"
Distance Table Top To Spindle Nose68.31"1,735.1 mm
Max Table Load55,000 lb24,947.6 kg
Rapid Traverse (X/Y/Z)787.4 / 787.4 / 472.44 in/min.787.4 / 787.4 / 472.44 in/min.
Rapid Traverse W118 in/min.118 in/min.
ControlCNC (Fanuc 31iB5)CNC (Fanuc 31iB5)
