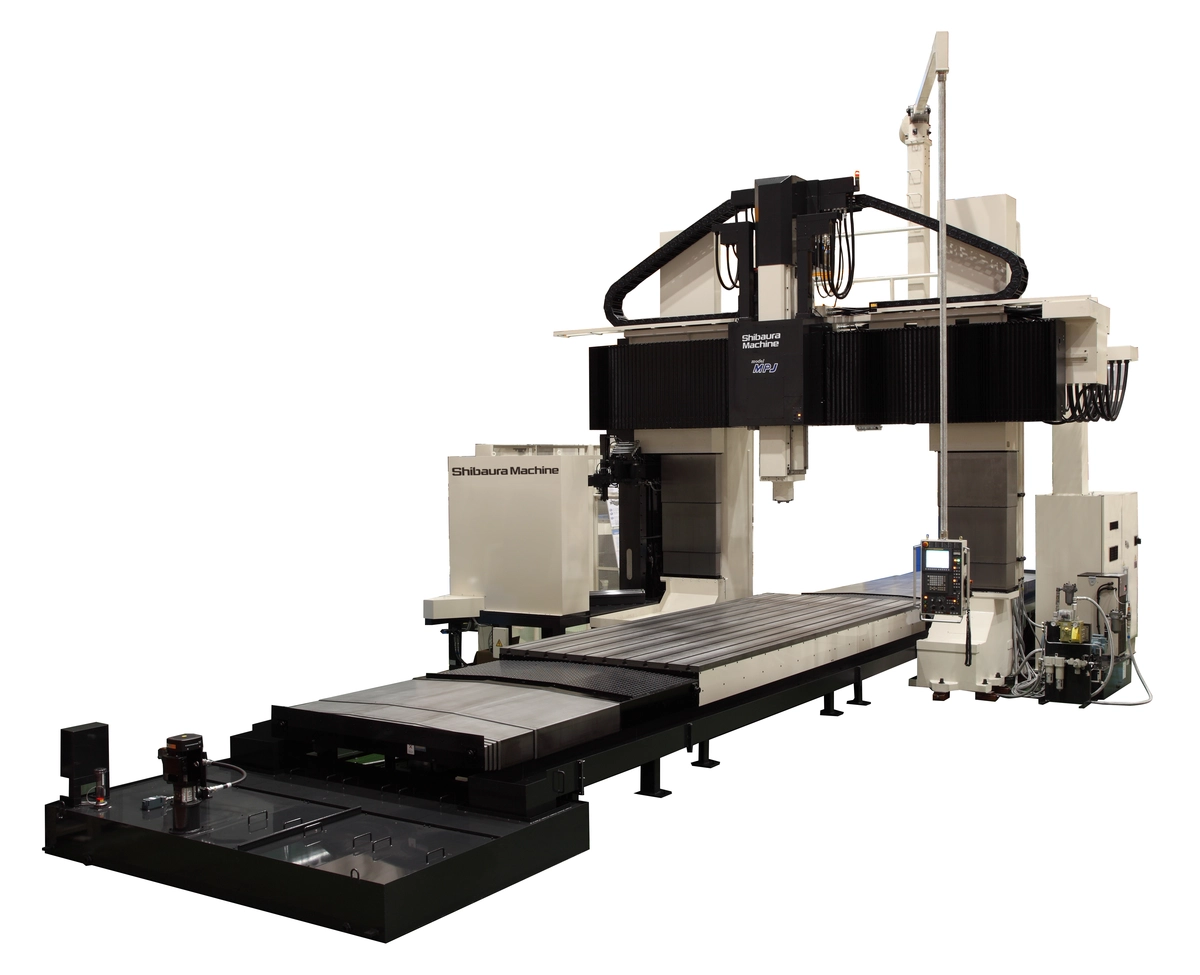

SHIBAURA MACHINE MPJ DOUBLE COLUMN TYPE CNC MACHINING CENTER

SHIBAURA MACHINE MPJ DOUBLE COLUMN TYPE CNC MACHINING CENTER

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
SHIBAURA MACHINE
Model:
MPJ
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine MPJ Double Column Type CNC Machining Center, 4-Pos Automatic Attachment Indexing Device, Ram-type Spindle Head, Tool Clamping/Unclamping Unit, W-Axis NC Positioning, Oil Mist Lubrication Unit

Ram-type spindle head (attachment change capable)
Automatic attachment indexing device (4-pos at 90°)
W-axis NC positioning
Tool clamping/unclamping unit
Oil mist lubrication unit
Hydraulic unit
Ram cooling oil temperature regulator
5-face cutter head designed for AATC (option)
Automatic attachment changer (AAC) (option)
Automatic attachment tool changer (AATC) (option)
Automatic attachment indexing device (AAI - 5°) (option)
Direct table change type automatic workpiece changer (DTC/AWC) (option)
Angle head and snout (option)

X-Axis165.3" / 204.7" / 244.1"165.3" / 204.7" / 244.1"
Y-Axis118.1" / 137.8" / 157.5"118.1" / 137.8" / 157.5"
Z-Axis31.5"800.1 mm
W-Axis39.4"1,000.8 mm
Power40 hp29.8 kW
RPM4,000 RPM4,000 RPM
# ATC6060
Taper7/24 #507/24 #50
Table-W78.74" / 98.43" / 122.05"78.74" / 98.43" / 122.05"
Table-L157.48" / 196.85" / 236.22"157.48" / 196.85" / 236.22"
Distance Between Columns102.4" / 122" / 141.7"102.4" / 122" / 141.7"
Max Table Load44,000 ~ 72,750 lb44,000 ~ 72,750 lb
Rapid Traverse (X/Y/Z)65.62 / 65.62 / 32.81 in/min.65.62 / 65.62 / 32.81 in/min.
Rapid Traverse W3.28 in/min.3.28 in/min.
ControlCNC (Fanuc 31iB5)CNC (Fanuc 31iB5)
