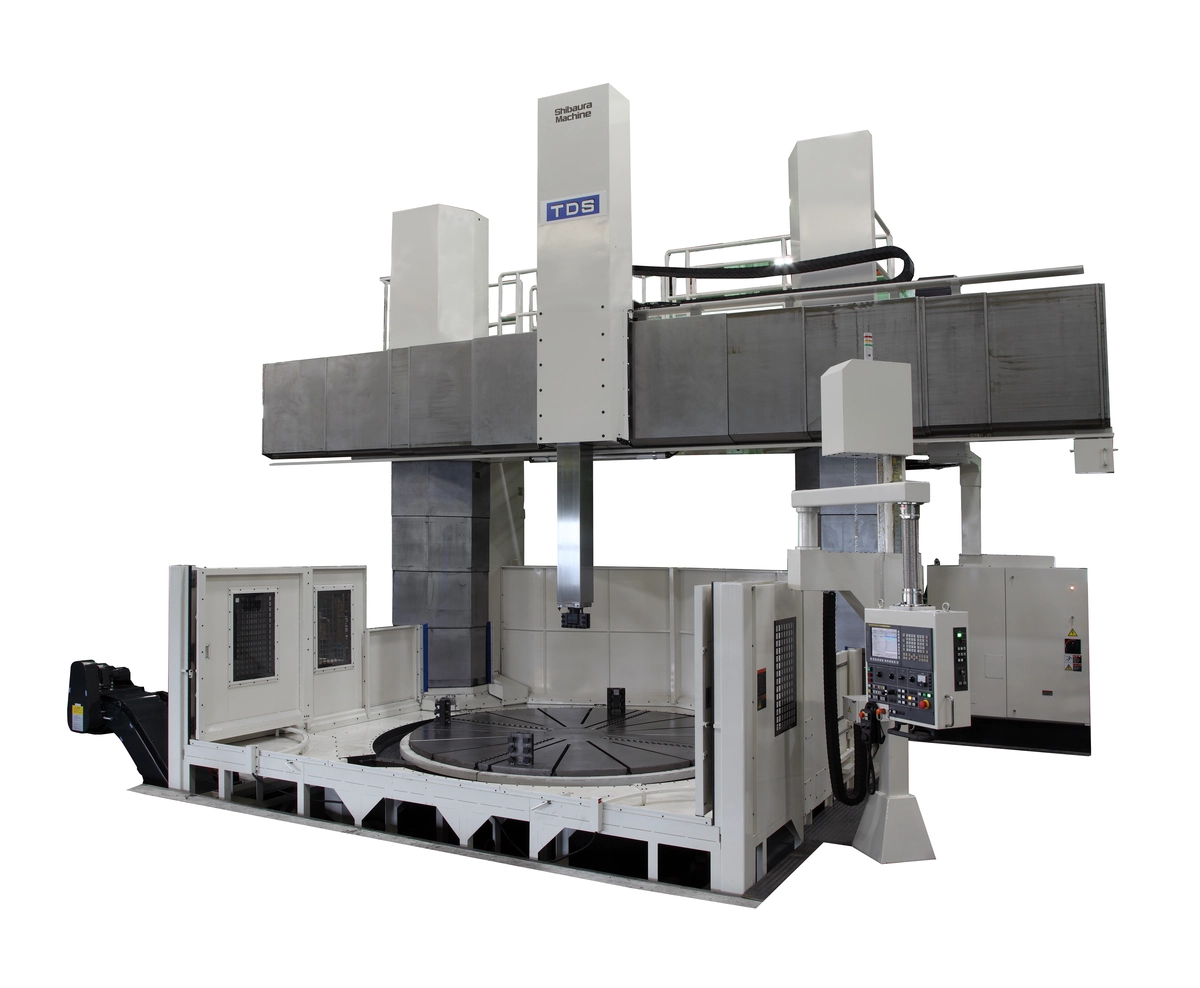

SHIBAURA MACHINE TDS-40/50(S) DOUBLE-COLUMN CNC VERTICAL BORING AND TURNING MILL
Have one to sell?
ConditionNew
New
Shibaura Machine TDS-40/50(S) Double-Column CNC Vertical Boring And Turning Mill, Ram-Type Spindle Head, Spindle Head Cooling Unit, Table Oil Cooling Unit, Cross-Rail Step Positioning Unit
Ram-type spindle head (attachment change capable)
Spindle head cooling unit
Cross-rail step positioning unit
Table oil cooling unit
10,000 rpm high-speed spindle, big-plus (option)
Z-axis thermal displacement compensation function (option)
Direct table change type automatic workpiece changer (DTC/AWC) (option)
Shape recognition preview control function (CNC shape) (option)
Automatic measuring Renishaw probe (option)
Shibaura Machine TDS-40/50(S) Double-Column CNC Vertical Boring And Turning Mill, Ram-Type Spindle Head, Spindle Head Cooling Unit, Table Oil Cooling Unit, Cross-Rail Step Positioning Unit
Ram-type spindle head (attachment change capable)
Spindle head cooling unit
Cross-rail step positioning unit
Table oil cooling unit
10,000 rpm high-speed spindle, big-plus (option)
Z-axis thermal displacement compensation function (option)
Direct table change type automatic workpiece changer (DTC/AWC) (option)
Shape recognition preview control function (CNC shape) (option)
Automatic measuring Renishaw probe (option)
Imperial
| Table Dia | 157.48" |
| Swing | 196.85" |
| Cut Height | 108.2" |
| X-Axis (Horizontal Ram) | -100.3" ~ 104.3" |
| Z-Axis (Vertical Ram) | 59.055" |
| Vertical Travel (cross rail) | 68.9" |
| Power (Table) | 60 hp |
| RPM | 3,000 RPM |
| Table Speed | 100 RPM |
| Taper | 7/24 #50 |
| ATC | 24 |
| Feed Rate (X/Z) | 78.74 in/min. |
| Rapid Traverse (X/Z) | 394 in/min. |
| Max Table Load | 66,139 lb |
| Control | CNC (Fanuc 31i-B) |
| Dimensions | 472.44" X 299.21" X 295.27" |
| Weight | 121,254 lb |
