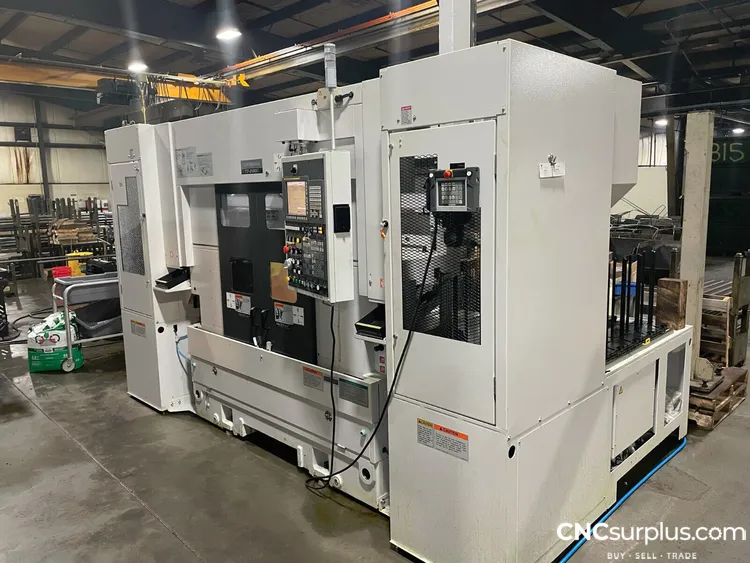

2022 TAKISAWA TT-2100G PARALLEL TWIN-SPINDLE CNC LATHE
CNC Lathes
2022 Takisawa TT-2100G Parallel Twin-spindle CNC Lathe, Dual 6" 3-Jaw Kitigawa Hydraulic Chucks, 6000 RPM Spindles, 16-Pallet Gantry Loading System, Chip Conveyor, Dual 520W Coolant Pumps
Dual 6" 3-jaw Kitigawa N-6 hydraulic programmable chucks
Auto chuck open/close (
6000 rpm spindle upgrade
16-pallet gantry loading system w/ Raku-Raku loader software
Loader travel (x60.63"/y26.06"/z8.5")
88 lb single pallet capacity
Upgrade to 8" spec max ⌀6.3" | L3.15" | 6.6 lb x2
Raku-Raku tool monitor software
NG shute w/ workpiece sensor
Dual 520w coolant pumps
Enomoto chip conveyor
(2) 10-station turret
(2) programmable chuck air blow
(2) face tool holder (1" x 1")
(4) round tool holder (⌀1.25")
(4) OD tool holder (1" x 1")
| Between Spindles | 13.38" |
| Machining Length | 5.33" |
| Max Turning Dia | 9.45" |
| # Axis | 2 |
| Chuck Size | 6" |
| Spindle Through Hole | 2.09" |
| Bearing Inside Diameter | 3.15" |
| Power | 15 hp |
| Max RPM | 6,000 RPM |
| Spindle Nose | ⌀5.511" Flat |
| X-Axis Travel | 5.59" |
| Z-Axis Travel | 6.5" |
| Tailstock | No |
| Live Tooling | No |
| Sub Spindle | No |
| Rapid Traverse (X/Z) | 944 in/min. |
| Turret Capacity | 10 |
| Made In | Japan |
| Control | CNC (Fanuc OiTF) |
| Dimensions | 111.22" X 103.43" X 106.30" |
| Weight | 11,440 lb |
