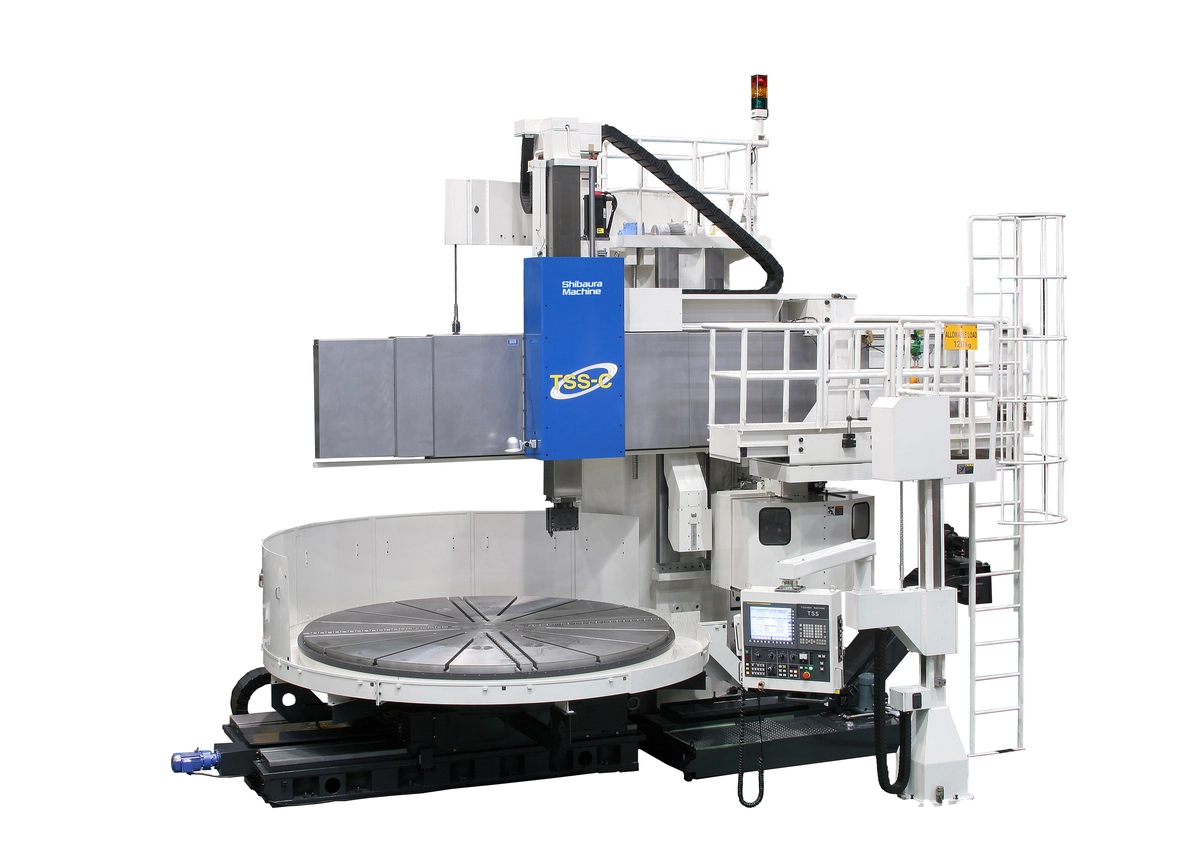

SHIBAURA MACHINE TSS-30/55C(S) CNC VERTICAL BORING AND TURNING MILL

SHIBAURA MACHINE TSS-30/55C(S) CNC VERTICAL BORING AND TURNING MILL

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Boring Mills (incld VTL)
Manufacturer:
SHIBAURA MACHINE
Model:
TSS-30/55C(S)
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine TSS-30/55C(S) CNC Vertical Boring And Turning Mill, Dual Face Contact TSC, C-Axis, Railhead Straightness Compensation, Table Lubricant Oil Cooling Unit

Dual face contact through spindle coolant
Railhead straightness compensation device (x-axis)
C-axis
Table lubricant oil cooling unit
Scale feedback on x/z/c (option)
+15.7" high type column (option)
+31.5" extra high type column (option)
+9.8" ram travel extend (option)
+19.7" extra ram travel extend (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw RTS probe (option)

Table Dia118.1"2,999.7 mm
Swing216.5"5,499.1 mm
Cut Height102.3"2,598.4 mm
X-Axis (Horizontal Ram)68.9"68.9"
Z-Axis (Vertical Ram)39.3"998.22 mm
Vertical Travel (cross rail)47.2"1,198.9 mm
Power24.6 hp18.3 kW
Power (Table)60 hp44.7 kW
RPM1,500 RPM1,500 RPM
Table Speed80 RPM80 RPM
Taper7/24 #507/24 #50
ATC2424
Rapid Traverse (X/Z)394 / 315 in/min.394 / 315 in/min.
Max Table Load44,000 lb19,958.1 kg
ControlCNC (Fanuc 31i-B)CNC (Fanuc 31i-B)
Dimensions368" X 256" X 262"368" X 256" X 262"
Weight79,370 lb79,370 lb
