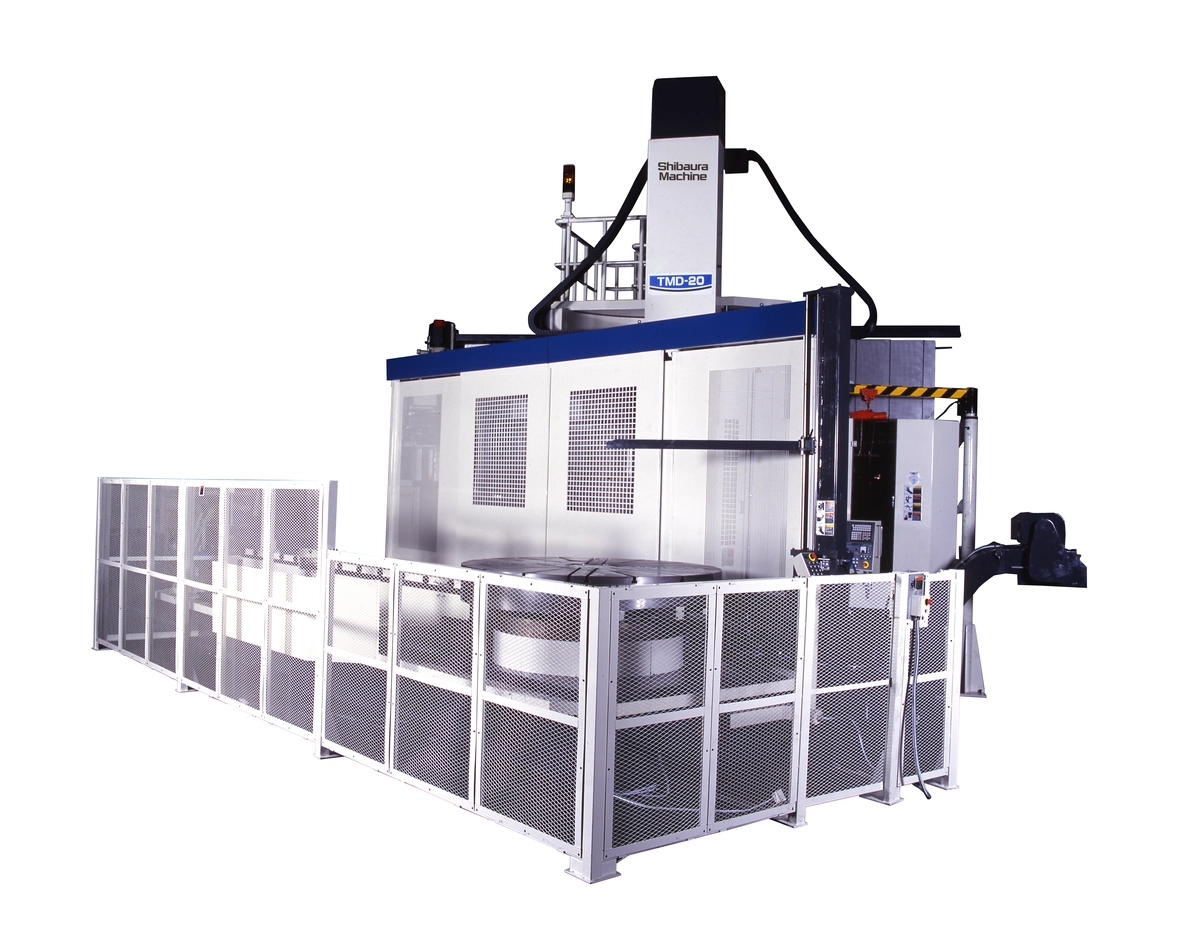

SHIBAURA MACHINE TMD-20 CNC VERTICAL BORING AND TURNING MILL W/ LIVE SPINDLE

SHIBAURA MACHINE TMD-20 CNC VERTICAL BORING AND TURNING MILL W/ LIVE SPINDLE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Boring Mills (incld VTL)
Manufacturer:
SHIBAURA MACHINE
Model:
TMD-20
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine TMD-20 CNC Vertical Boring And Turning Mill, 3000 RPM Live Spindle, Dual-Face Contact Spindle, C-Axis, TSC, Table Lubricant Oil Cooling Unit, Portable Handwheel

Dual-face contact through spindle coolant
Table lubricant oil cooling unit
C-axis
Portable handwheel feed unit (x/y/z)
Scale feedback on x/z/c (option)
2-pallet APC multi-pallet magazine system, 4/6/8 pallets (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw RTS probe (option)

Table Dia78.7"1,999 mm
Swing106.3"2,700 mm
Cut Height63"1,600.2 mm
X-Axis (Horizontal Ram)-39.5" ~ 53.9"-39.5" ~ 53.9"
Z-Axis (Vertical Ram)41.3"1,049 mm
Vertical Travel (cross rail)29.5"749.3 mm
Power30 hp22.4 kW
Power (Table)60 hp44.7 kW
RPM3,000 RPM3,000 RPM
Table Speed250 RPM250 RPM
Taper7/24 #507/24 #50
ATC2424
Rapid Traverse (X/Z)394 in/min.394 in/min.
Max Table Load33,000 lb14,968.6 kg
ControlCNC (Fanuc 31i-B)CNC (Fanuc 31i-B)
Dimensions263" X 228" X 248"263" X 228" X 248"
