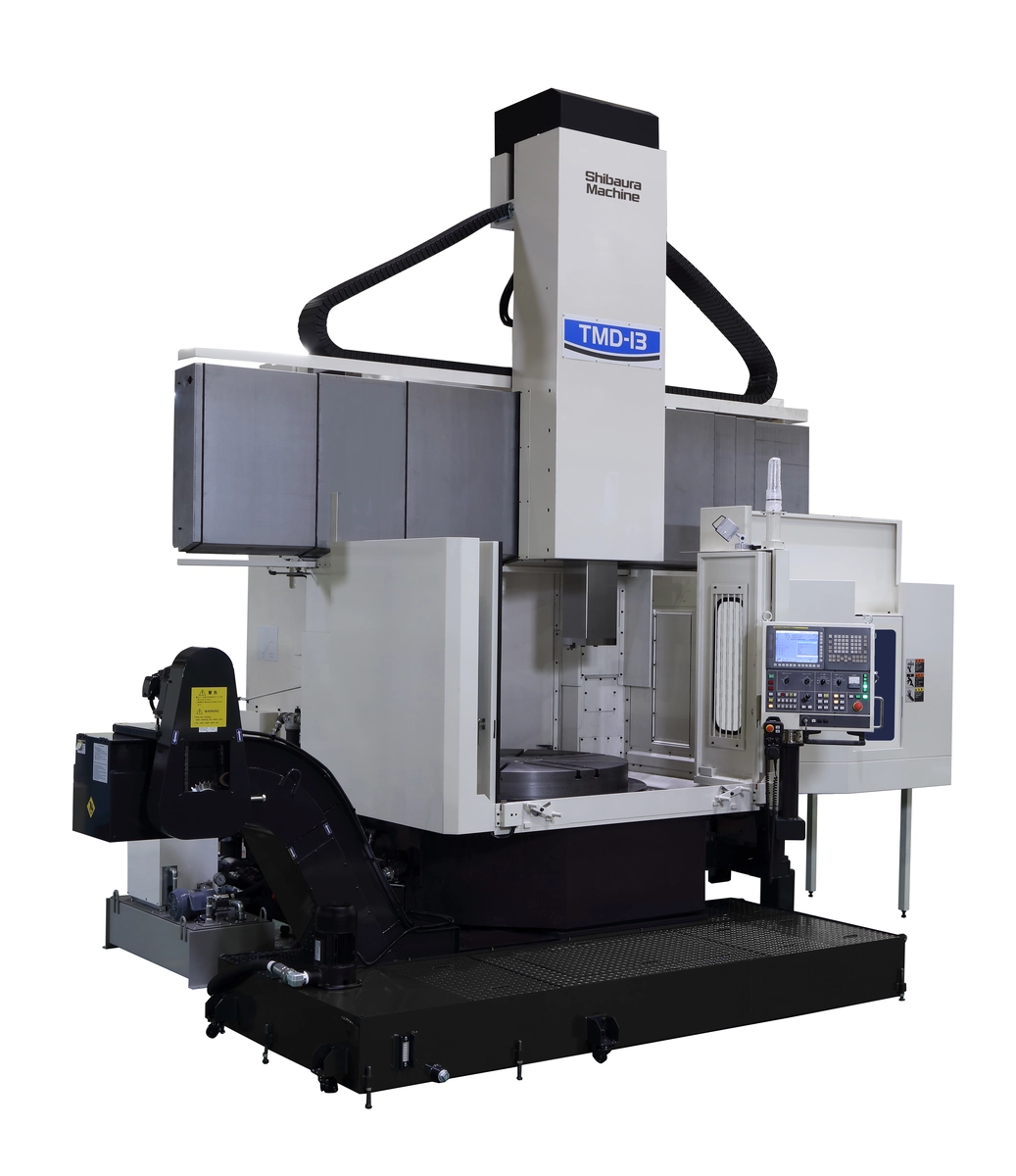

SHIBAURA MACHINE TMD-13 CNC VERTICAL BORING AND TURNING MILL W/ LIVE SPINDLE

SHIBAURA MACHINE TMD-13 CNC VERTICAL BORING AND TURNING MILL W/ LIVE SPINDLE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Boring Mills (incld VTL)
Manufacturer:
SHIBAURA MACHINE
Model:
TMD-13
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine TMD-13 CNC Vertical Boring And Turning Mill, 3000 RPM Live Spindle, Dual-Face Contact Spindle, TSC, C-Axis, Table Lubricant Oil Cooling Unit, Portable Handwheel

Dual-face contact through spindle coolant
Table lubricant oil cooling unit
C-axis
Portable handwheel feed unit (x/y/z)
Scale feedback on x/z/c (option)
2-pallet APC multi-pallet magazine system, 4/6/8 pallets (option)
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw RTS probe (option)

Table Dia49.2"1,249.7 mm
Swing63"1,600.2 mm
Cut Height43.3"1,099.8 mm
X-Axis (Horizontal Ram)-24.8" ~ 36.2"-24.8" ~ 36.2"
Z-Axis (Vertical Ram)31.5"800.1 mm
Vertical Travel (cross rail)19.7"500.38 mm
Power30 hp22.4 kW
Power (Table)60 hp44.7 kW
RPM3,000 RPM3,000 RPM
Table Speed450 RPM450 RPM
Taper7/24 #507/24 #50
ATC2424
Rapid Traverse (X/Z)472 / 394 in/min.472 / 394 in/min.
Max Table Load17,600 lb7,983.2 kg
ControlCNC (Fanuc 31i-B)CNC (Fanuc 31i-B)
Dimensions226" X 176" X 216.5"226" X 176" X 216.5"
