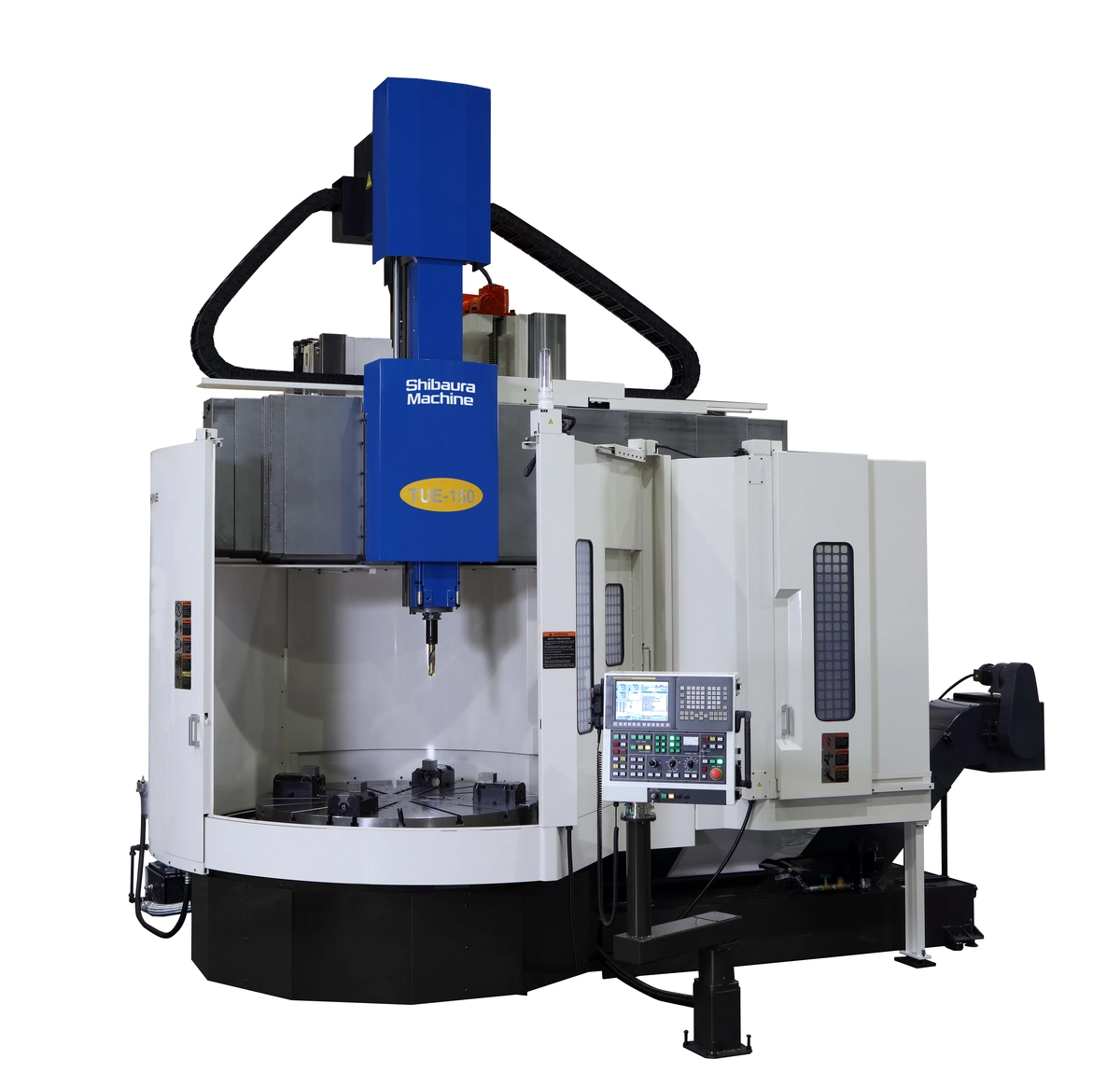

SHIBAURA MACHINE TUE-200(S) CNC VERTICAL BORING AND TURNING MILL

SHIBAURA MACHINE TUE-200(S) CNC VERTICAL BORING AND TURNING MILL

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Boring Mills (incld VTL)
Manufacturer:
SHIBAURA MACHINE
Model:
TUE-200(S)
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine TUE-200(S) CNC Vertical Boring And Turning Mill, Dual Face Contact TSC, C-Axis, Table Lubricant Oil Cooling Unit, Accessible Slide Door

Dual face contact through spindle coolant
C-axis
Linear scale feedback (x-axis)
Table lubricant oil cooling unit
Accessible slide door
Automatic measuring Renishaw probe (option)
Automatic tool setting Renishaw probe (option)

Table Dia78.74"2,000 mm
Swing94.48"2,399.8 mm
X-Axis (Horizontal Ram)-1.97" ~ 53.15"-1.97" ~ 53.15"
Z-Axis (Vertical Ram)35.43"899.92 mm
Vertical Travel (cross rail)39.37"1,000 mm
Power24.6 hp18.3 kW
Power (Table)60 hp44.7 kW
RPM3,000 RPM3,000 RPM
Table Speed240 RPM240 RPM
Taper7/24 #507/24 #50
ATC1818
Rapid Traverse (X/Z)590.55 / 472.4 in/min.590.55 / 472.4 in/min.
Max Table Load33,070 lb15,000.3 kg
ControlCNC (Fanuc OiTF)CNC (Fanuc OiTF)
Dimensions252.8" X 172.8" X 217.5"252.8" X 172.8" X 217.5"
