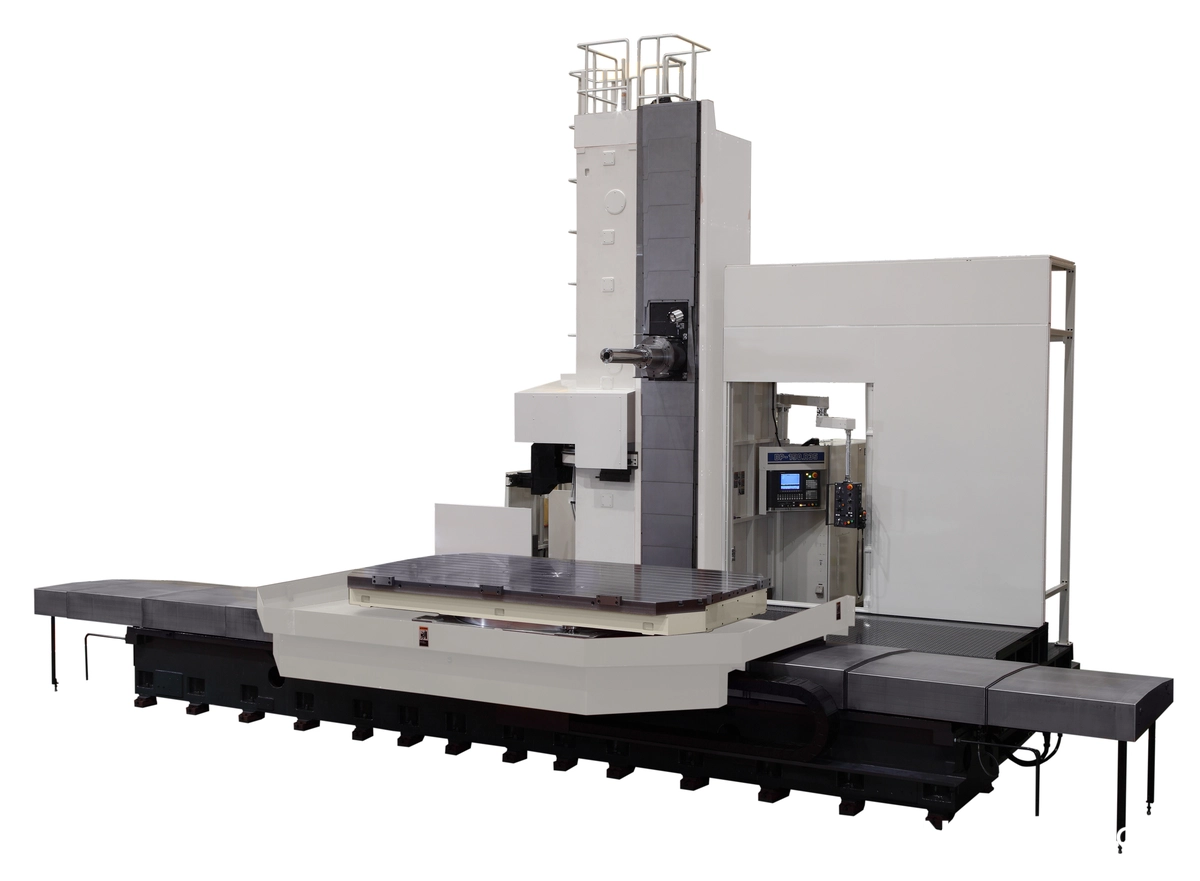

SHIBAURA MACHINE BP-150.R35 HORIZONTAL CNC BORING MACHINE

Address: 3040 New Street, Suite 206, Burlington, ON, L7N 1M5, CA
Telephone: 905-635-7530

Have one to sell?

905-635-7530

sales@cncsurplus.com

ConditionNew

Quantity

SHIBAURA MACHINE BP-150.R35 Horizontal Table Type Boring Mills | CNCsurplus, A Div. of Comtex Leasing Corp. (1)

SHIBAURA MACHINE BP-150.R35 Horizontal Table Type Boring Mills | CNCsurplus, A Div. of Comtex Leasing Corp. (2)

SHIBAURA MACHINE BP-150.R35 Horizontal Table Type Boring Mills | CNCsurplus, A Div. of Comtex Leasing Corp. (3)

SHIBAURA MACHINE BP-150.R35 Horizontal Table Type Boring Mills | CNCsurplus, A Div. of Comtex Leasing Corp.

New

Have one to sell?

Overview

Type:

Horizontal Table Type Boring Mills

Manufacturer:

SHIBAURA MACHINE

Model:

BP-150.R35

Condition:

Build To Order

Status:

For Sale

Description

Shibaura Machine BP-150.R35 Horizontal CNC Boring Machine, TSC, B-Axis, Rotary Milling Function, Portable Handwheel, Spindle Cooling Unit

Equipped With

7.8" long-nose through spindle coolant
B-axis
Rotary milling function
Portable handwheel
Spindle cooling unit
High-speed spindle (8000 rpm) (option)
Automatic measuring RENISHAW probe & calibration block (option)
Automatic Tool setting RENISHAW RTS probe (option)

Specifications

ImperialMetric

Spindle Size	5.9"	149.86 mm
X-Axis	240"	6,096 mm
Y-Axis	140"	3,556 mm
Z-Axis	88"	2,235.2 mm
W-Axis	28"	711.2 mm
Power	50 hp	37.3 kW
RPM	2,500 RPM	2,500 RPM
Table-W	78.7"	1,999 mm
Table-L	137.8"	3,500.1 mm
Max Table Load	55,115 lb	55,115 lb
ATC	60	60
Rapid Traverse (X/Y/Z/W)	393 / 393 / 393 / 196.8 in/min.	393 / 393 / 393 / 196.8 in/min.
Positioning	0.0003"	0.0076 mm
Repeatability	0.0002"	0.0041 mm
Control	CNC (TOSNUC 999)	CNC (TOSNUC 999)
