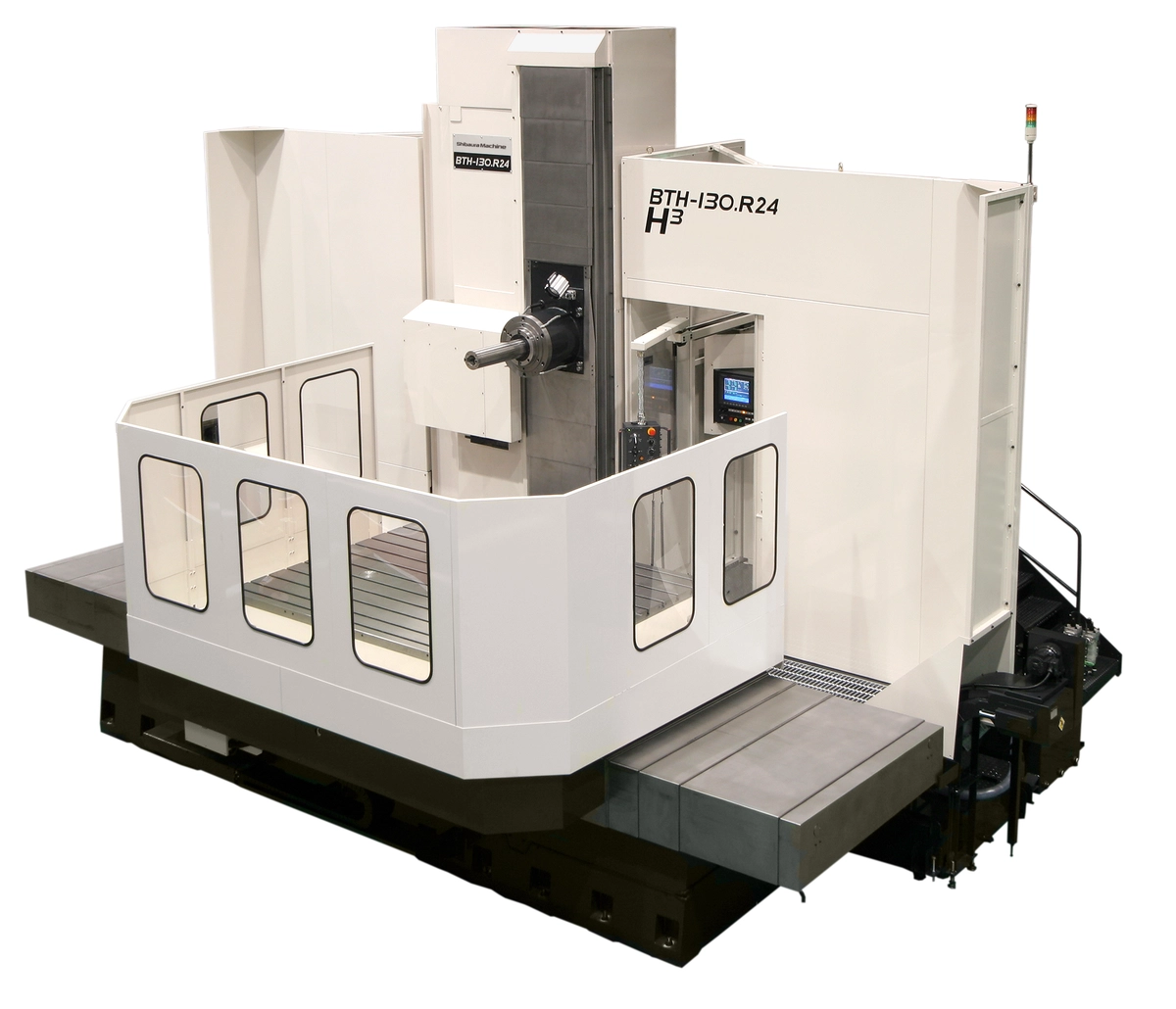

SHIBAURA MACHINE BTH-130.R24 HORIZONTAL CNC BORING MACHINE
Have one to sell?
ConditionNew
New
Shibaura Machine BTH-130.R24 Horizontal CNC Boring Machine, Rotary Milling Function, Portable Handwheel
Rotary milling function
Portable handwheel feed unit
Hydro-static table load capacity 88,000 lb
Scale feedback (X, Y Z, axis (option)
4000 rpm high-speed spindle (option)
Automatic pallet changer (APC) (option)
Automatic-measuring RENISHAW probe & calibration block (option)
Automatic-tool setting RENISHAW RTS probe (option
Shibaura Machine BTH-130.R24 Horizontal CNC Boring Machine, Rotary Milling Function, Portable Handwheel
Rotary milling function
Portable handwheel feed unit
Hydro-static table load capacity 88,000 lb
Scale feedback (X, Y Z, axis (option)
4000 rpm high-speed spindle (option)
Automatic pallet changer (APC) (option)
Automatic-measuring RENISHAW probe & calibration block (option)
Automatic-tool setting RENISHAW RTS probe (option
Imperial
| Spindle Size | 5.1" |
| X-Axis | 118" |
| Y-Axis | 90" |
| Z-Axis | 60" |
| W-Axis | 20" |
| B-Axis | 0.0001 |
| Power | 40 hp |
| RPM | 2,500 RPM |
| Table-W | 78.7" |
| Table-L | 94.4" |
| Max Table Load | 44,000 lb |
| ATC | 60 |
| Rapid Traverse (X/Y/Z/W) | 551 / 551 / 551 / 196.8 in/miun. |
| Positioning | 0.0002" |
| Repeatability | 0.0001" |
| Control | CNC (TOSNUC 999) |
| Dimensions | 281.1" X 265.4" X 199.2" |
