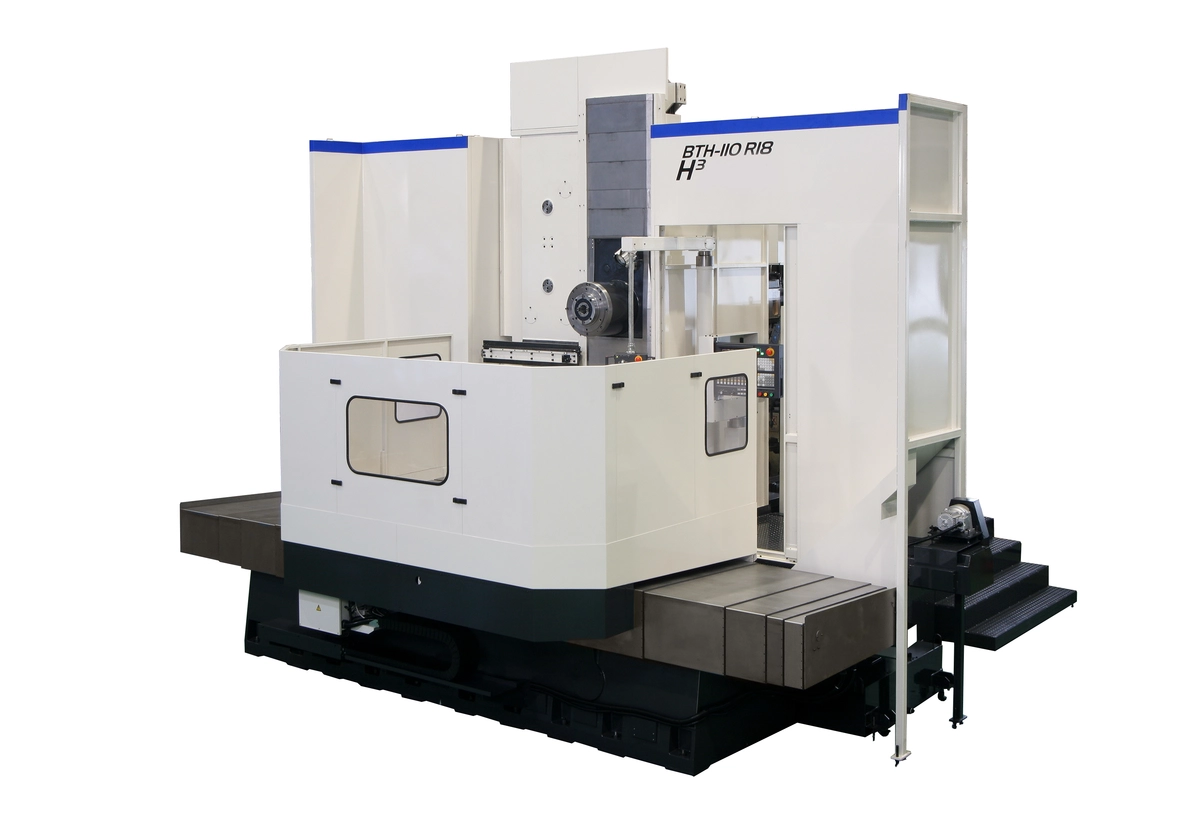

SHIBAURA MACHINE BTH-110.R18 HORIZONTAL CNC BORING MACHINE
Have one to sell?
ConditionNew
New
Shibaura Machine BTH-110.R18 Horizontal CNC Boring Machine, Rotary Milling Function, B-Axis, Portable Handwheel
Rotary milling function
B-axis
Portable handwheel
4000 rpm high-speed spindle (option)
5" spindle head (option)
Scale feedback (x,y,z,b-axis) (option)
Automatic pallet changer (APC) (option)
Automatic measuring RENISHAW probe & calibration block (option)
Automatic Tool setting RENISHAW RTS probe (option)
Shibaura Machine BTH-110.R18 Horizontal CNC Boring Machine, Rotary Milling Function, B-Axis, Portable Handwheel
Rotary milling function
B-axis
Portable handwheel
4000 rpm high-speed spindle (option)
5" spindle head (option)
Scale feedback (x,y,z,b-axis) (option)
Automatic pallet changer (APC) (option)
Automatic measuring RENISHAW probe & calibration block (option)
Automatic Tool setting RENISHAW RTS probe (option)
Imperial
| Spindle Size | 4.3" |
| X-Axis | 100" |
| Y-Axis | 80" |
| Z-Axis | 60" |
| W-Axis | 20" |
| RPM | 2,500 RPM |
| Table-W | 55" |
| Table-L | 71" |
| Max Table Load | 22,000 lb |
| ATC | 60 |
| Rapid Traverse (X/Y/Z/W) | 708.7 / 708.7 / 708.7 / 236.2 in/min. |
| Positioning | 0.0002" |
| Repeatability | 0.0001" |
| Control | CNC (TOSNUC 999) |
| Dimensions | 275.6" X 253.7" X 185" |
