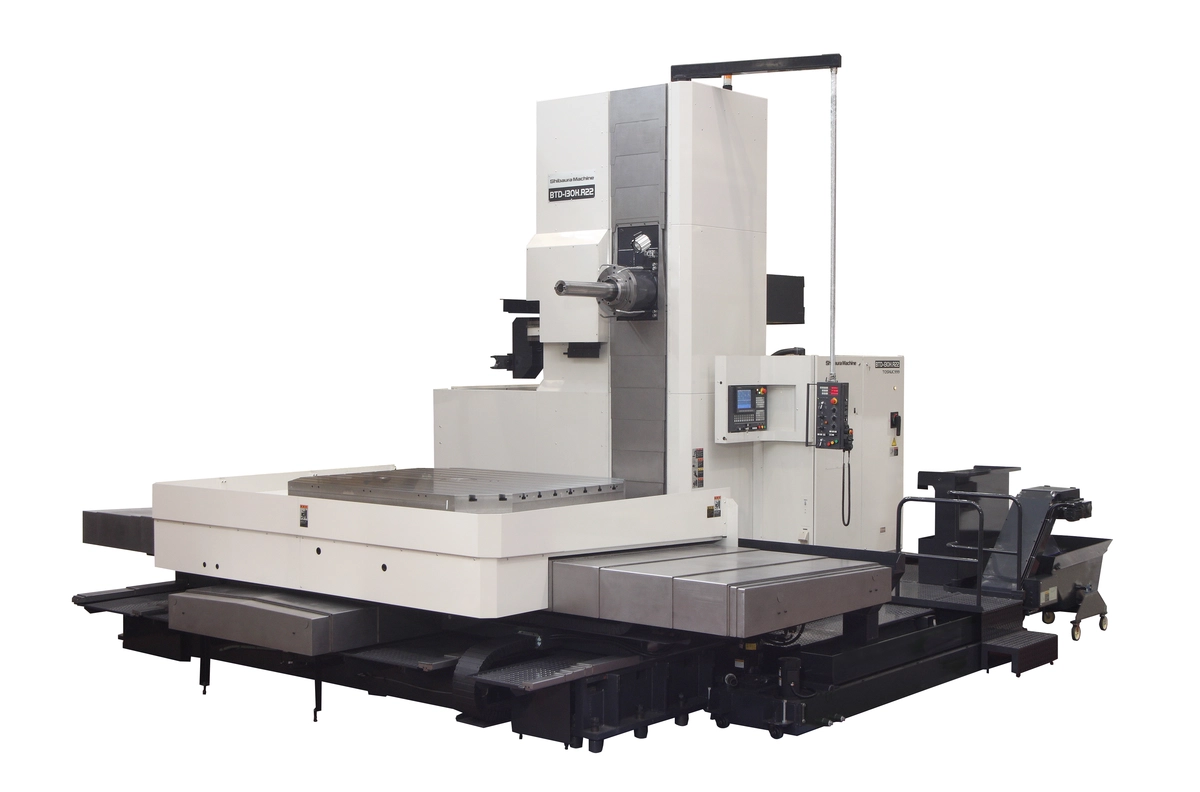

SHIBAURA MACHINE BTD-130H.R22 HORIZONTAL CNC BORING MACHINE

SHIBAURA MACHINE BTD-130H.R22 HORIZONTAL CNC BORING MACHINE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Horizontal Table Type Boring Mills
Manufacturer:
SHIBAURA MACHINE
Model:
BTD-130H.R22
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine BTD-130H.R22 Horizontal CNC Boring Machine, Big Plus Spindle, TSC, B-Axis, Rotary Milling Function, Portable Handwheel

Big plus spindle
Through spindle coolant
Rotary milling function
B-axis
Portable handwheel
Scale feedback (x,y,z,b-axis) (option)
Table load capacity 44,000 lb (option)
Automatic pallet changer (APC) (option)
Automatic measuring Renishaw probe and calibration block (option)
Automatic tool setting Renishaw RTS probe (option)

Spindle Size5.1"129.54 mm
X-Axis118"2,997.2 mm
Y-Axis90"2,286 mm
Z-Axis63"1,600.2 mm
W-Axis27.5"698.5 mm
Power40 hp29.8 kW
RPM2,500 RPM2,500 RPM
Table-W70.8"1,798.3 mm
Table-L86.6"2,199.6 mm
Max Table Load26,400 lb26,400 lb
ATC3838
Rapid Traverse (X/Y/Z/W)393.3 / 393.3 / 393.3 / 236.2 in/min.393.3 / 393.3 / 393.3 / 236.2 in/min.
Positioning0.0002"0.0051 mm
Repeatability0.0001"0.003 mm
ControlCNC (TOSNUC 999)CNC (TOSNUC 999)
Dimensions300.2" X 293.1" X 197.6"300.2" X 293.1" X 197.6"
