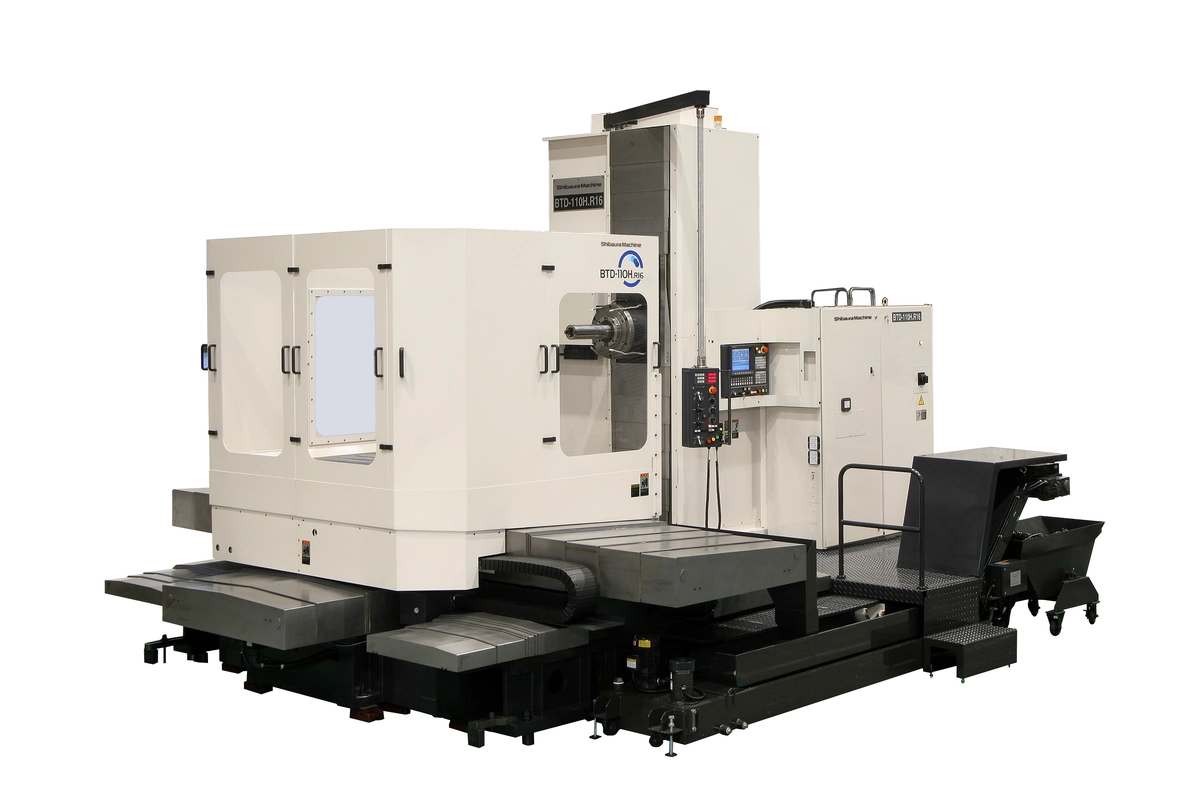

SHIBAURA MACHINE BTD-110H.R16 HORIZONTAL CNC BORING MACHINE

SHIBAURA MACHINE BTD-110H.R16 HORIZONTAL CNC BORING MACHINE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Horizontal Table Type Boring Mills
Manufacturer:
SHIBAURA MACHINE
Model:
BTD-110H.R16
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine BTD-110H.R16 Horizontal CNC Boring Machine, Rotary Milling Function, Portable Handwheel, Spindle Cooling Unit

Rotary milling function
Spindle cooling unit
Portable handwheel feed unit (x, y, z, w, b)
High-speed spindle (8000 rpm) (option)
Scale feedback on x, y, z, b (option)
Automatic pallet changer (APC), (option)
Automatic measuring RENISHAW probe & calibration block (option)
Automatic-tool setting RENISHAW RTS probe (option)

Spindle Size4.3"109.22 mm
X-Axis78.8"2,001.5 mm
Y-Axis60"1,524 mm
Z-Axis57.1"1,450.3 mm
W-Axis20"508 mm
B-Axis360°360°
RPM3,000 RPM3,000 RPM
Table-W55.1"1,399.5 mm
Table-L62.99"1,599.9 mm
Max Table Load6,300 lb6,300 lb
ATC3838
Rapid Traverse (X/Y/Z/W)472 / 472 / 472 / 196.8 in/min.472 / 472 / 472 / 196.8 in/min.
ControlCNC (TOSNUC 999)CNC (TOSNUC 999)
