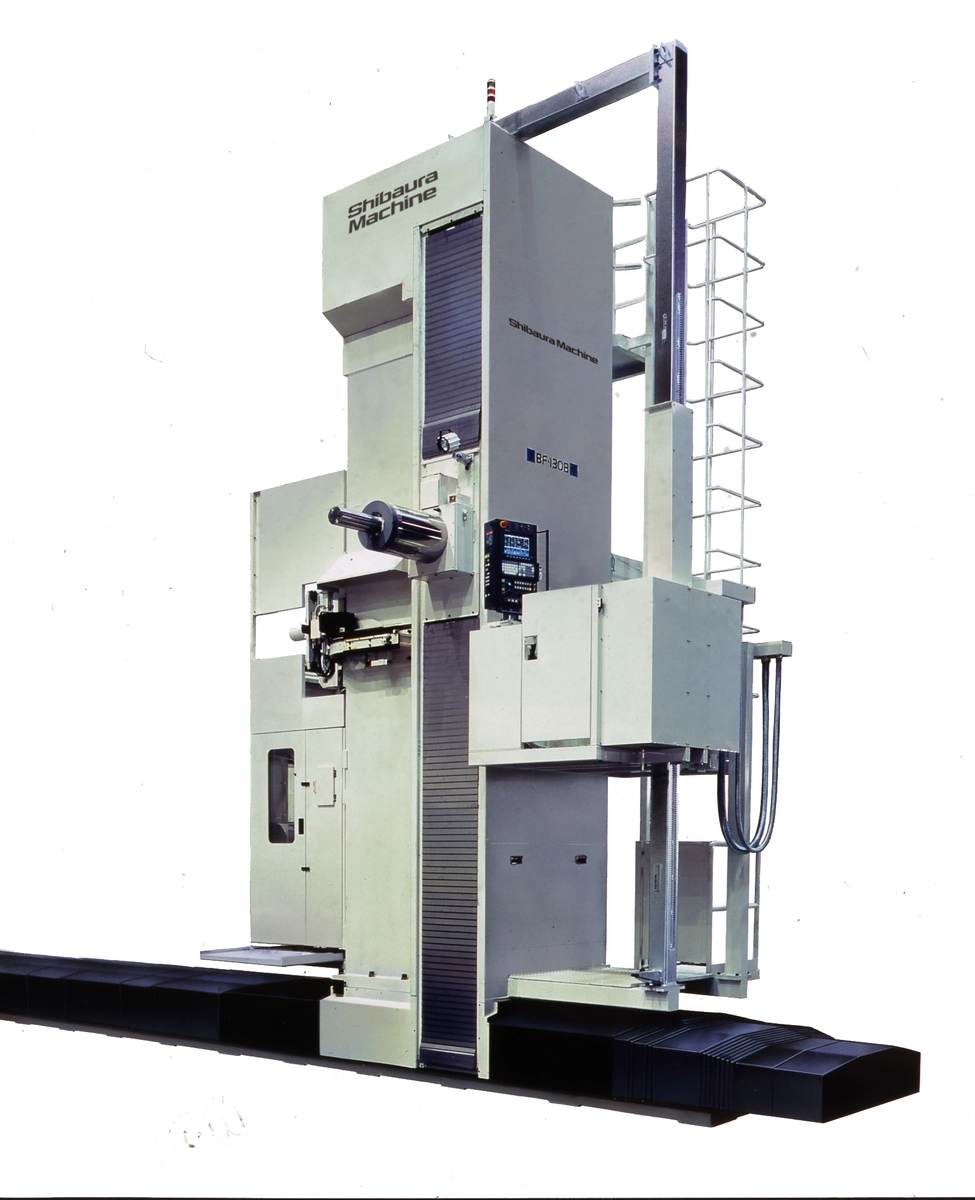

SHIBAURA MACHINE BF-130B HORIZONTAL FLOOR-TYPE CNC BORING MACHINE

SHIBAURA MACHINE BF-130B HORIZONTAL FLOOR-TYPE CNC BORING MACHINE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Horizontal Floor Type Boring Mills
Manufacturer:
SHIBAURA MACHINE
Model:
BF-130B
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine BF-130B Horizontal Floor-Type CNC Boring Machine, Rotary Table, Portable Handwheel Feed Unit, Mist Lubricating Unit

Rotary table
Portable handwheel feed unit (x, y, z, w, b-axis)
Mist lubricating unit
Scale feedback on x, y linear axis, & b rotary axis (option)
Automatic attachment tool changer (AATC) (option)
Automatic attachment changer (aac) (option)
Operator's lift with control box (option)
Automatic measuring Renishaw probe & calibration block (option)
Automatic tool setting Renishaw RTS probe (option)

Spindle Size5.1"129.54 mm
Quill Dia14.2"360.68 mm
X-Axis177" ~ 472"177" ~ 472"
Y-Axis98" / 118" / 138"98" / 118" / 138"
Z-Axis17.7"449.58 mm
W-Axis39.4"1,000.8 mm
Power30 hp22.4 kW
RPM1,600 RPM1,600 RPM
Taper7/24 #507/24 #50
ATC6060
Max Table Load35,200 ~ 66,000 lb35,200 ~ 66,000 lb
Rapid Traverse (X/Y/Z)394 / 394 / 236 in/min.394 / 394 / 236 in/min.
ControlCNC (TOSNUC 999 / FANUC)CNC (TOSNUC 999 / FANUC)
