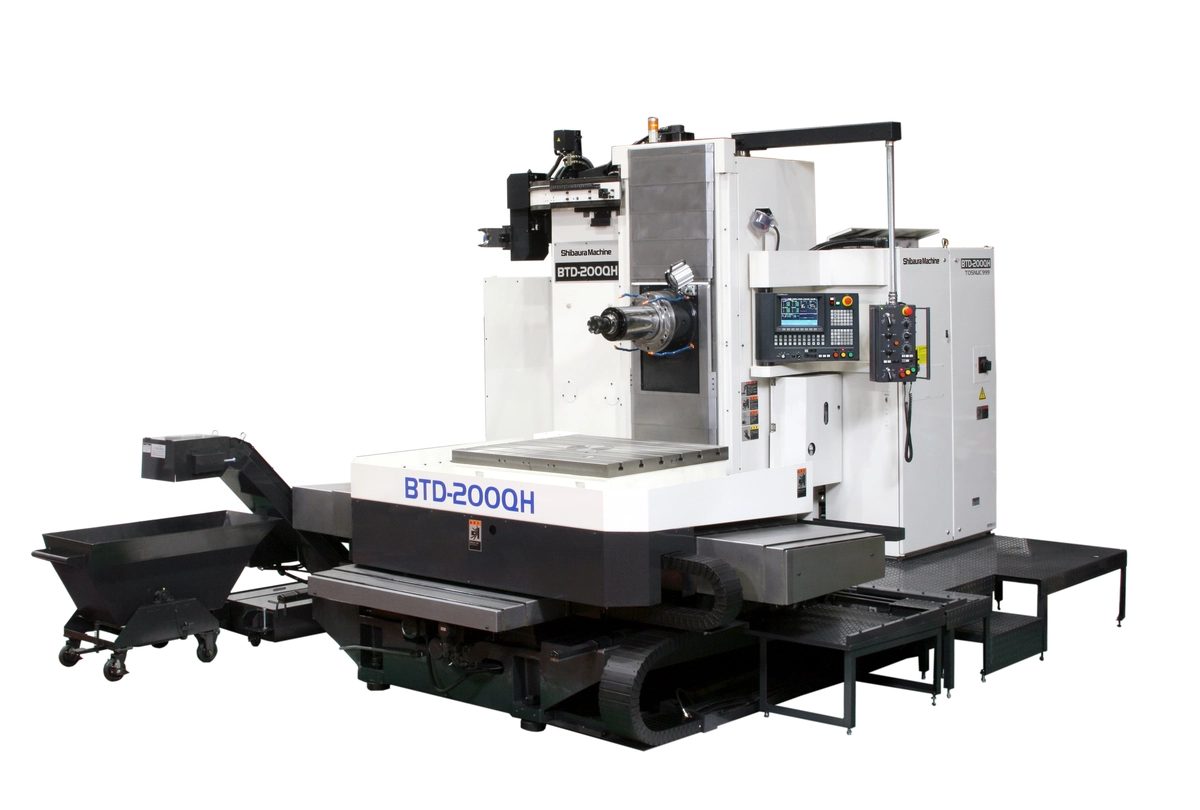

SHIBAURA MACHINE BTD-200QH HORIZONTAL TABLE-TYPE CNC BORING MACHINE

SHIBAURA MACHINE BTD-200QH HORIZONTAL TABLE-TYPE CNC BORING MACHINE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionNew
Have one to sell?

Overview

Type:
Horizontal Table Type Boring Mills
Manufacturer:
SHIBAURA MACHINE
Model:
BTD-200QH
Condition:
Build To Order
Status:
For Sale

Description

Shibaura Machine BTD-200QH Horizontal Floor-Type CNC Boring Machine, TSC, B-Axis Rotary Milling function, Portable Handwheel

Through spindle coolant
Rotary milling function (b-axis)
Portable handwheel feed unit (x,y,z,w,b)
5000 rpm high-speed spindle (option)
Scale feedback on all axis (option)
Automatic measuring Renishaw probe and calibration block (option)
Automatic tool setting Renishaw RTS probe (option)
Automatic pallet changer (option)

Spindle Size4.3"109.22 mm
Quill Dia7.8"198.12 mm
X-Axis59"1,498.6 mm
Y-Axis47"1,193.8 mm
Z-Axis27.5"698.5 mm
W-Axis15.7"398.78 mm
Power30 hp22.4 kW
RPM3,000 RPM3,000 RPM
Table-W39.3"998.22 mm
Table-L47.2"1,198.9 mm
Max Table Load8,800 lb8,800 lb
ATC3030
Rapid Traverse (X/Y/Z/W)472 / 472 / 472 / 196.8 IN/MIN.472 / 472 / 472 / 196.8 IN/MIN.
Positioning0.0002"0.0051 mm
Repeatability0.0001"0.003 mm
ControlCNC (TOSNUC 999)CNC (TOSNUC 999)
Dimensions129.5" X 248" X 180.3"129.5" X 248" X 180.3"
