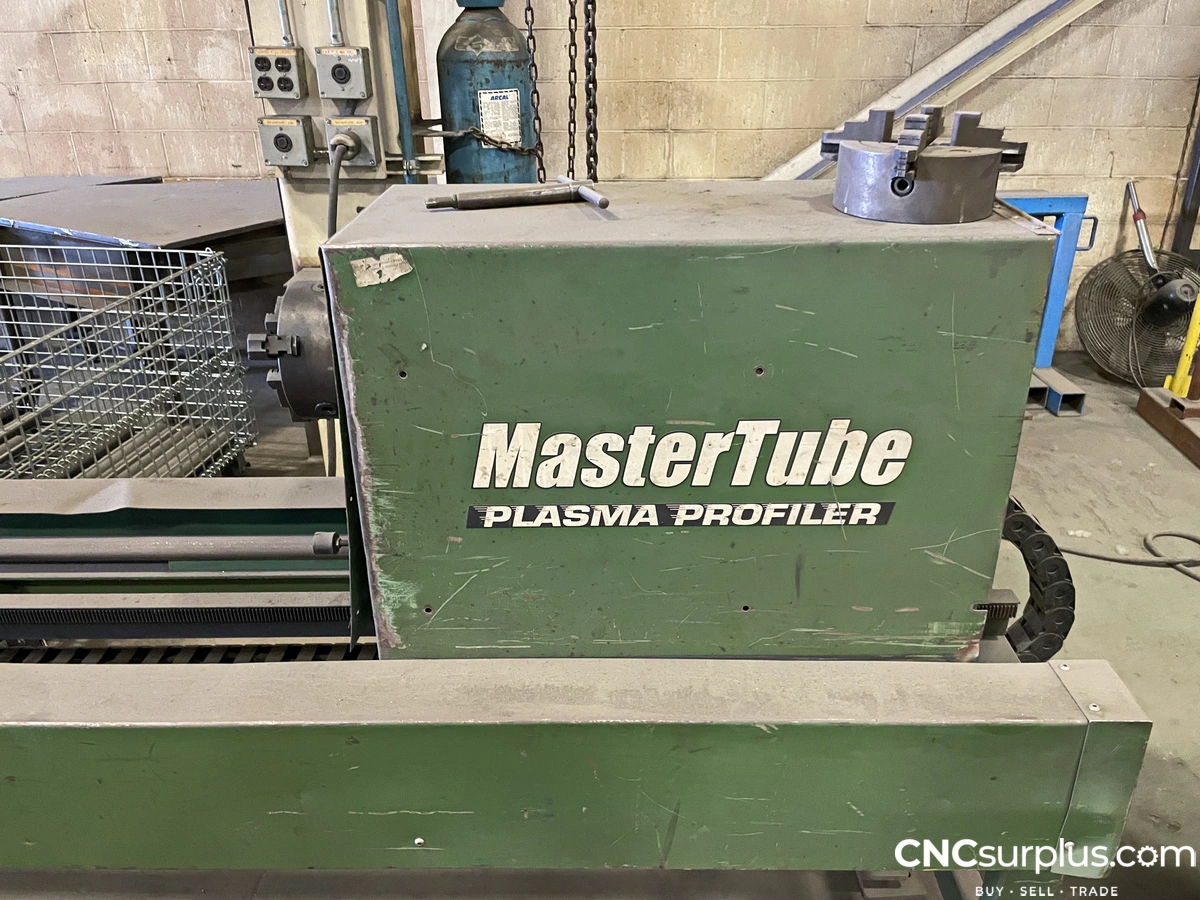

2010 VERNON TOOL MASTERTUBE MTC4-0106 CNC PLASMA PIPE PROFILING MACHINE

2010 VERNON TOOL MASTERTUBE MTC4-0106 CNC PLASMA PIPE PROFILING MACHINE

Have one to sell?
905-635-7530
sales@cncsurplus.com
ConditionUsed
1 available
View Auction
Have one to sell?

Overview

Type:
Plasma Cutters
Manufacturer:
VERNON TOOL
Model:
MASTERTUBE MTC4-0106
Year:
2010
Stock #:
13335
Status:
For Sale

Description

2010 Vernon Tool Mastertube MTC4-0106 CNC Plasma Pipe Profiling Machine, Umac 4-Axis Motion Control, Precision Planetary Gearhead And Gear Belt, DC Servo Drives W/ Optical Isolation, Precision Rack And Pinion, Windows-Based PC,

UMAC 4-axis motion control
Precision planetary gearhead & gear belt
DC servo drives w/ optical isolation
Precision rack & pinion

Diameter Range1” - 6”1” - 6”
Rectangular Range4” X 6” & 5” X 5” (Max 7.5” Cross Section)4” X 6” & 5” X 5” (Max 7.5” Cross Section)
Min Tube Length15"381 mm
Max Tube Length24"609.6 mm
Max Weight Per Foot30 lb13.6 kg
Max Total Weight600 lb272.2 kg
Intersection Angle+/- 89°+/- 89°
Max Torch Bevel Angle+/- 55°+/- 55°
Cutting Speed200 in/min.5.1 m/min.
Repeatability0.01"0.254 mm
Made InUnited StatesUnited States
ControlCNC (Windows-Based)CNC (Windows-Based)
