2010 HYUNDAI KIA HS400 HORIZONTAL CNC MACHINING CENTER
Have one to sell?
ConditionUsed
1 available

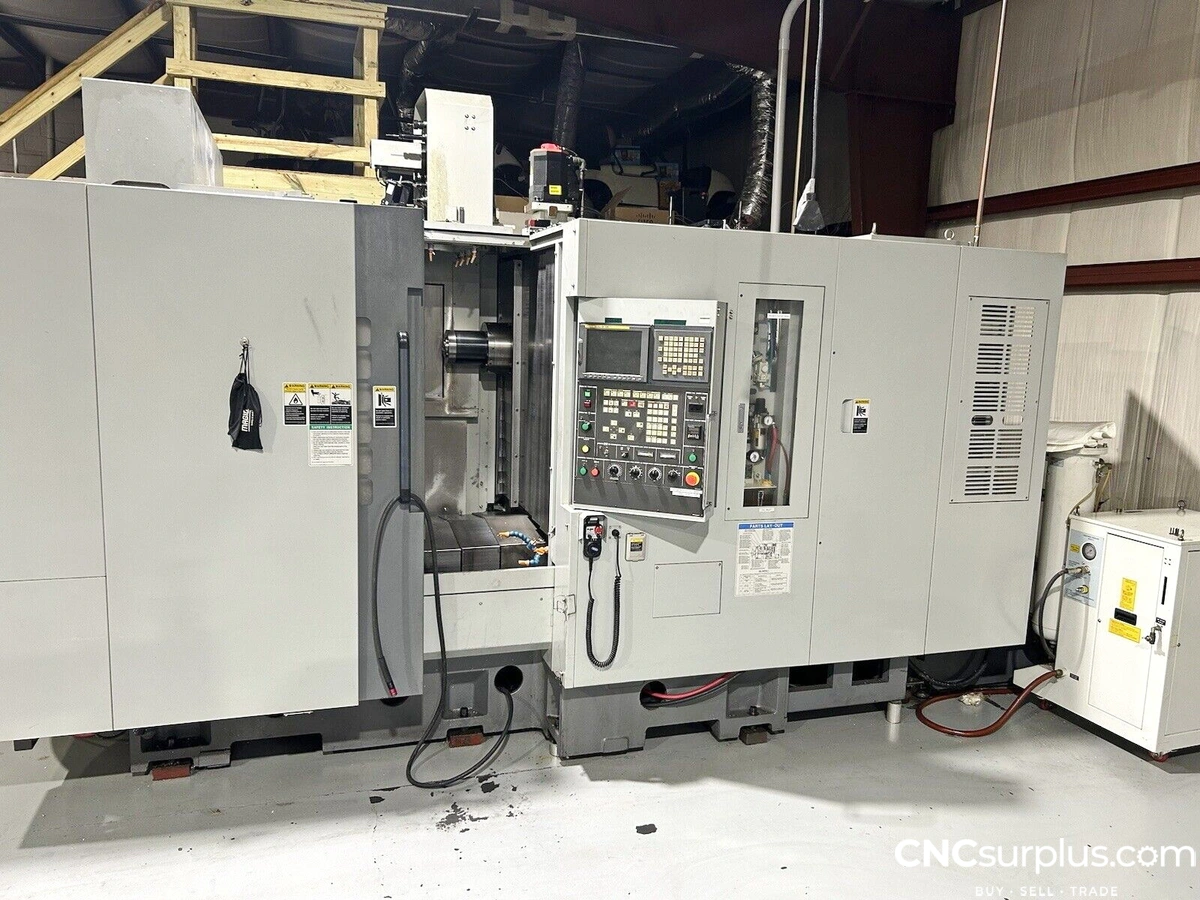

2010 Hyundai Kia HS400 Horizontal CNC Machining Center, High-Pressure TSC, Chip Conveyor, Spindle Oil Cooling, Rigid Tapping
Through spindle coolant (1000 psi)
6-pallets (4 extra)
Chip conveyor
Rigid tapping
Spindle oil cooler
Spindle override
2010 Hyundai Kia HS400 Horizontal CNC Machining Center, High-Pressure TSC, Chip Conveyor, Spindle Oil Cooling, Rigid Tapping
Through spindle coolant (1000 psi)
6-pallets (4 extra)
Chip conveyor
Rigid tapping
Spindle oil cooler
Spindle override
Imperial
| X-Axis | 24.4" |
| Y-Axis | 22" |
| Z-Axis | 25.6" |
| A-Axis | 1° Indexing |
| Power | 29.5 hp |
| RPM | 15,000 RPM |
| # ATC | 60 |
| Taper | CAT-40 |
| Pallet-W | 15.75" |
| Pallet-L | 15.75" |
| Max Workpiece Diameter | 25.6" |
| Max Workpiece Height | 25.6" |
| Max Pallet Load | 1,102 lb |
| # Axis | 3 |
| Rapid Traverse (X/Y/Z) | 1,969 in/min. |
| Control | CNC (Fanuc 18i-MB) |
| Dimensions | 181.5" X 92.5" X 102.8" |
