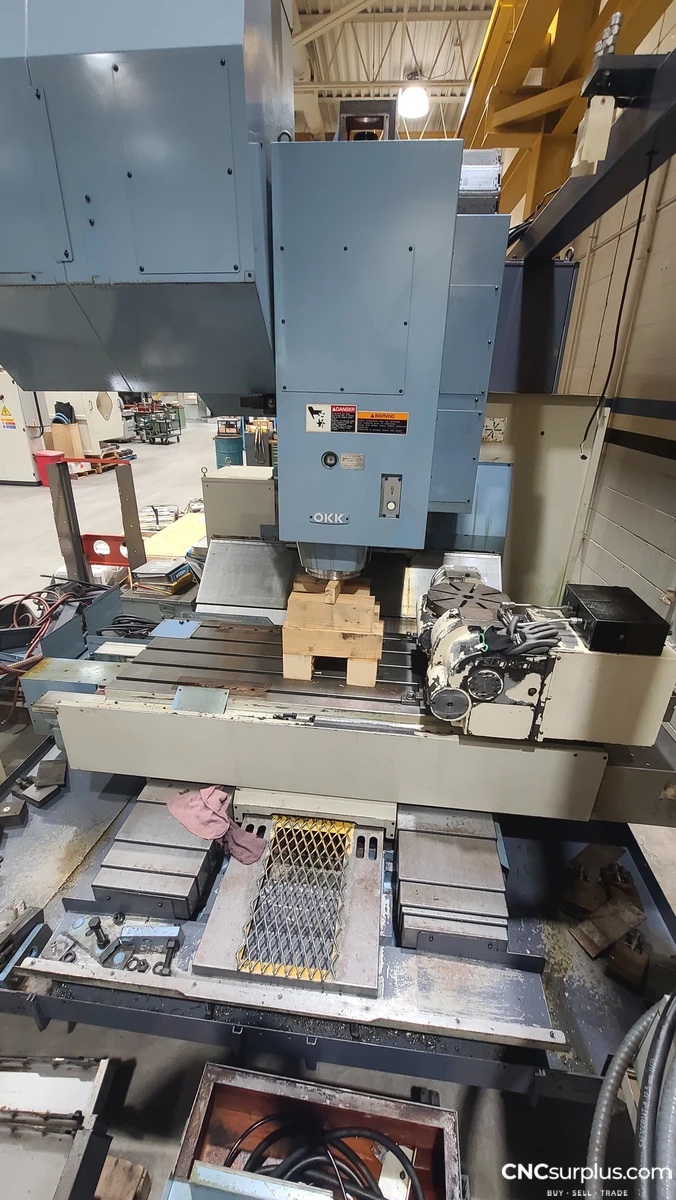

Okk MCV-660 Vertical 5-Axis CNC Machining Center, Tsudakoma Tilting Rotary Table, Coolant System
Tsudakoma 5-axis rotary table
Coolant system
X-Axis
59"
1,498.6 mm
Y-Axis
26"
660.4 mm
Z-Axis
25.5"
647.7 mm
Power
25 hp
18.6 kW
RPM
6,000 RPM
6,000 RPM
# ATC
30
30
Taper
#50
#50
Table Diameter (Rotary)
12.59"
319.79 mm
Table-W
25"
635 mm
Table-L
66"
1,676.4 mm
Distance Spindle Nose To Table Top
33"
838.2 mm
# Axis
5
5
Max Table Load
4,409 lb
4,409 lb
Max Table Load (Rotary)
330 lb
149.7 kg
Rapid Traverse (X/Y/Z)
787 / 787 / 630 in/min.
787 / 787 / 630 in/min.
Made In
Japan
Japan
Control
CNC (Mitsubishi Neomatic M-635)
CNC (Mitsubishi Neomatic M-635)
Dimensions
173″ X 157″ X 132″
173″ X 157″ X 132″
Weight
26,455 lb
26,455 lb
