Full 5-Axis
High-pressure coolant (70 BAR)
110 ATC
Part probe
Tool probe
Spindle air blowing system
Viewing window
| X-Axis | 129.92" | 3,300 mm |
| Y-Axis | 90.55" | 2,300 mm |
| Z-Axis | 39.37" | 1,000 mm |
| B-Axis | +/- 95° | +/- 95° |
| C-Axis | +/- 190° | +/- 190° |
| Power | 115 hp | 85.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 110 | 110 |
| Taper | HSK 100 | HSK 100 |
| Table-W | 49.21" | 1,249.9 mm |
| Table-L | 137.79" | 3,499.9 mm |
| Max Table Load | 19,841 lb | 8,999.7 kg |
| Rapid Traverse (X/Y/Z) | 984 / 1,575 / 1,575 in/min. | 984 / 1,575 / 1,575 in/min. |
| Made In | France | France |

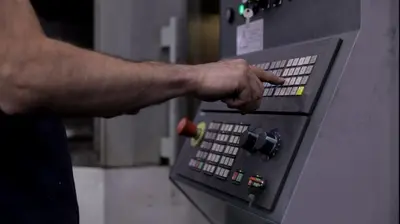

| Control | CNC (SIEMENS) | CNC (SIEMENS) |
