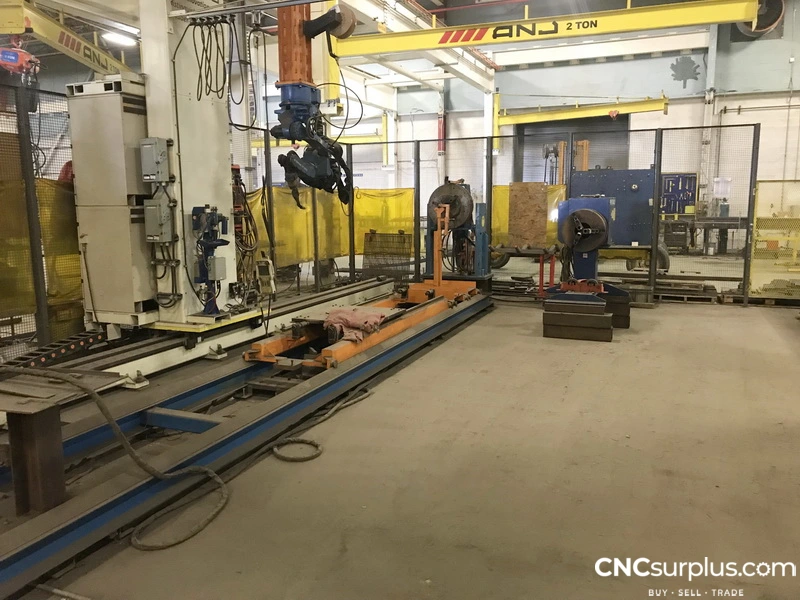

2012 YASKAWA MOTOMAN MA1400 50' ROBOTIC WELDING CELL GANTRY SYSTEM SEAM WELDER
Have one to sell?
ConditionUsed
1 available
2012 Yaskawa Motoman MA1400 50' Robotic Welding Cell Gantry System Seam Welder, NX100 Controller, Z-Axis Capable, Fronius TransPuls Synergic 5000 Powersource, 6.5" Touch Screen Display
Motoman NX100 controller
Z-axis capable
6.5’’ touch screen LCD colour display
Fronius Transpuls Synergic 5000 power source (GMAW/GTAW)
Comarc seam tracking & touch sensing
Head & tailstock on adjustable track
Track & jig included for piping
Robotiq Kinetiq Teach
Engineered operator gate system
2012 Yaskawa Motoman MA1400 50' Robotic Welding Cell Gantry System Seam Welder, NX100 Controller, Z-Axis Capable, Fronius TransPuls Synergic 5000 Powersource, 6.5" Touch Screen Display
Motoman NX100 controller
Z-axis capable
6.5’’ touch screen LCD colour display
Fronius Transpuls Synergic 5000 power source (GMAW/GTAW)
Comarc seam tracking & touch sensing
Head & tailstock on adjustable track
Track & jig included for piping
Robotiq Kinetiq Teach
Engineered operator gate system
Imperial
| # Axis | 6 |
| Payload | 6.6 lb |
| Reach | 56.45" |
| Repeatability | ±0.0031" |
| Axis-1 | ± 170° (220°/sec) |
| Axis-2 | -90° / +155° (200°/sec) |
| Axis-3 | -175° / +190° (220°/sec) |
| Axis-4 | ±150° (410°/sec) |
| Axis-5 | -45° / +180° (410°/sec) |
| Axis-6 | ±200° (610°/sec) |
| Weight | 287 lbs |
